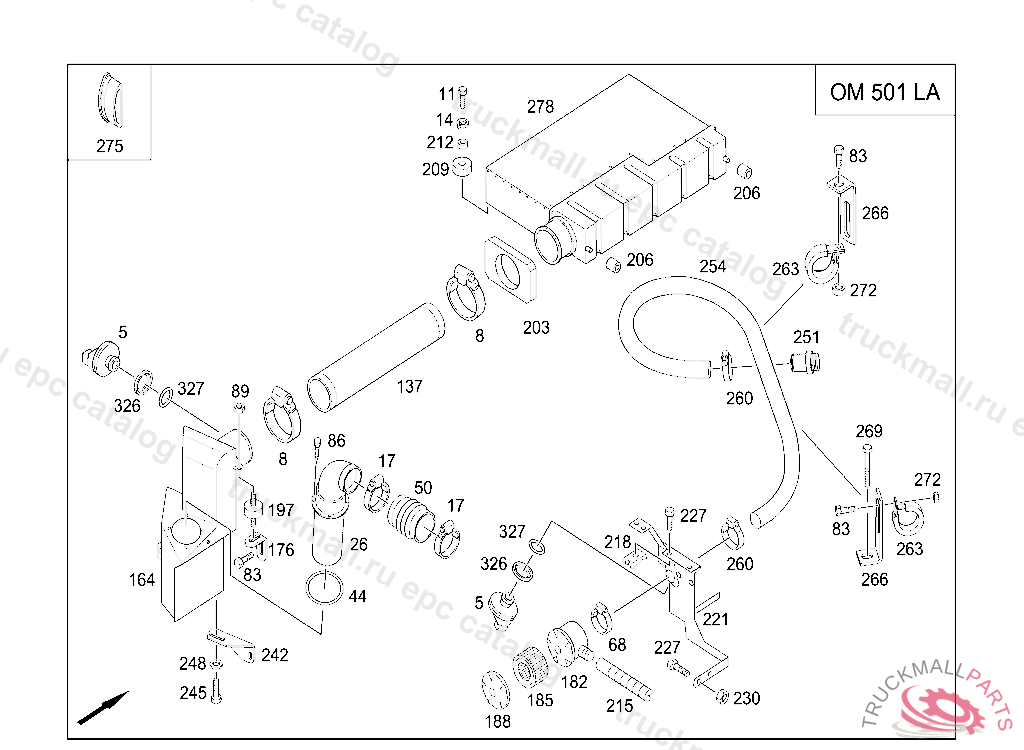

Поз.
Артикул
Описание
5
SENDER UNIT. CONTACT SENSOR
8
CLAMP180-200X12MM
11
HEXAGON HEAD BOLT
14
WASHER COMPRESSED AIR LINE TO BRACKET
14
LOCK WASHER CABLE TO FUSE BOX
17
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
17
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
68
CLAMP
83
SCREW BRACKET TO CAB REAR PANEL M 8X20
89
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
137
HOSE AIR INTAKE HOSE 925MM
176
BRACKET
182
AIR CLEANER
185
FILTER ELEMENT
188
COVER
197
RUBBER MOUNTING
203
SEAL
206
RUBBER BUSHING EXPANSION TANK D50X45MM
209
BUFFERD25X10/M6
212
SPACER SLEEVE
215
HOSE590 MM
215
HOSE1600 MM
215
HOSE
218
NUT
218
NUTM8
218
LOCK NUT. LOCK PANELLING TO BUMPER
221
BRACKET
227
SCREW , Replaced By: N910143008002
227
SCREWM 10X20
227
SCREW SPEED SENSOR TO REAR AXLE
227
SCREW PIPE ELBOW TO BRACKET M8X12
230
NUT , Replaced By: N913023010002
278
AIR CLEANER
326
THRUST RING14X10X2.6MM
327
O-RING
999
CABLE TIE LINE MOUNTING 375X8.4MM
999
CLAMP40/20MM
