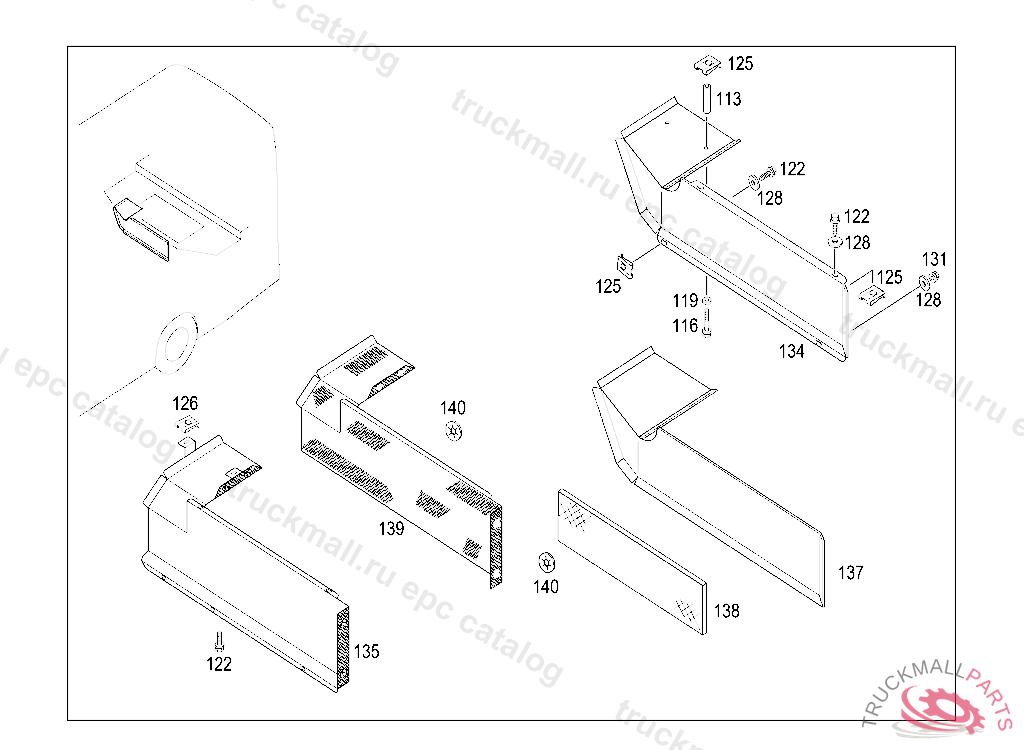

Поз.
Артикул
Описание
113
SPACER12X1X70MM
116
SCREW. HEXAGON HEAD BOLT LINE MOUNTING M6X90
119
WASHER PUMP TO CONSOLE
122
SCREW BRACKET AND CLAMP M6X20
125
LOCK. NUT , Replaced By: A0039941745
126
LOCK NUT. SPRING NUT MOUNTING PARTS
128
WASHER FRAME MOUNTING
131
NUT , Replaced By: N913023006001
134
COVERING
135
COVERING
137
INSULATION3X630X1404MM
138
INSULATION1000X1600X3MM, TO BE ADAPTED DURING ASSEMBLY
139
INSULATION SELF-ADHESIVE 5 MM, TO BE ADAPTED DURING ASSEMBLY
140
CLAMPING DISC30X23X3,5X0,4MM
999
LOOM TIE
999
CABLE TIE310X5MM
