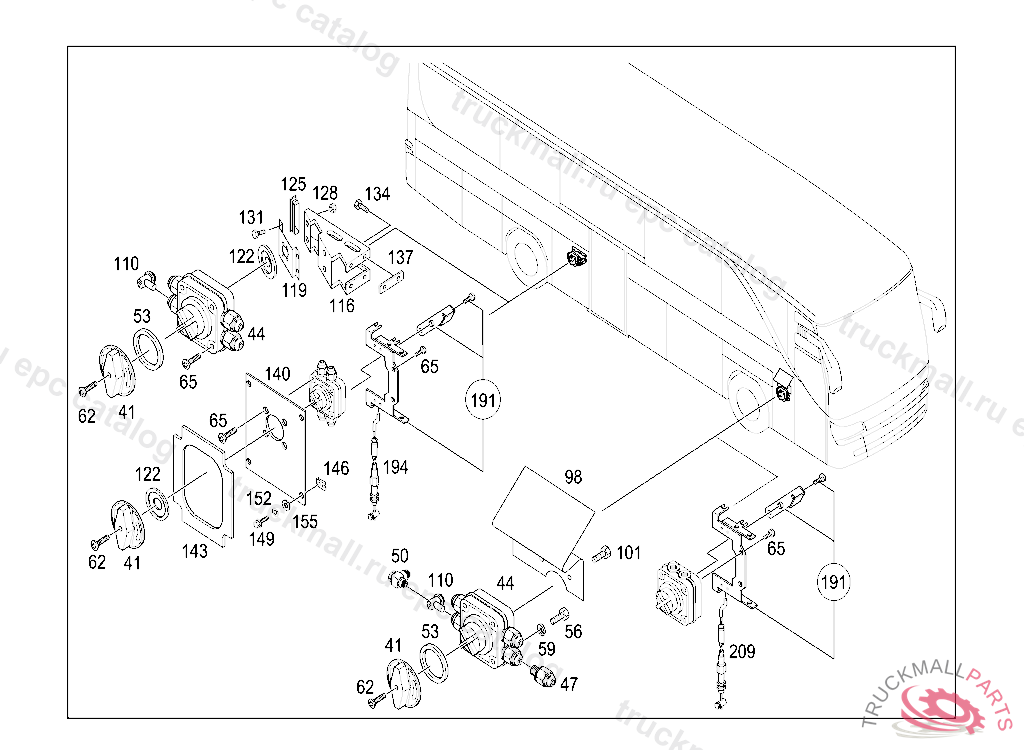

S 415 HD - 629.411 - 76 DOOR AND WINDOW ACCESSORIES
Поз.
Артикул
Описание
41
ROTARY KNOB
44
VALVE
44
CONTROL COCK
47
FITTING
50
SLEEVE
53
RUBBER PAD
56
SCREW
59
LOCK
62
SCREW
65
HEXAL. SOCKET CSK. BOLTM6X10 TX30
98
COVERING
98
COVERING
101
SCREWM 6X12
110
ELBOW FITTING
116
BRACKET , EXHAUST STOCK OF OLD PART NUMBER FIRST
116
BRACKET , Replaced By: A6327630414
119
PLATE
122
SEAL
122
SEAL , Replaced By: A6327570078
125
PLUG
128
NUT BRACKET TO FIRE WALL
131
SCREW , Replaced By: N914146006102
131
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
134
HEXAGON HEAD BOLT
137
PAD
191
CONTROL COCK
194
PULLL1400 MM
209
PULLL1400 MM
209
PULL
