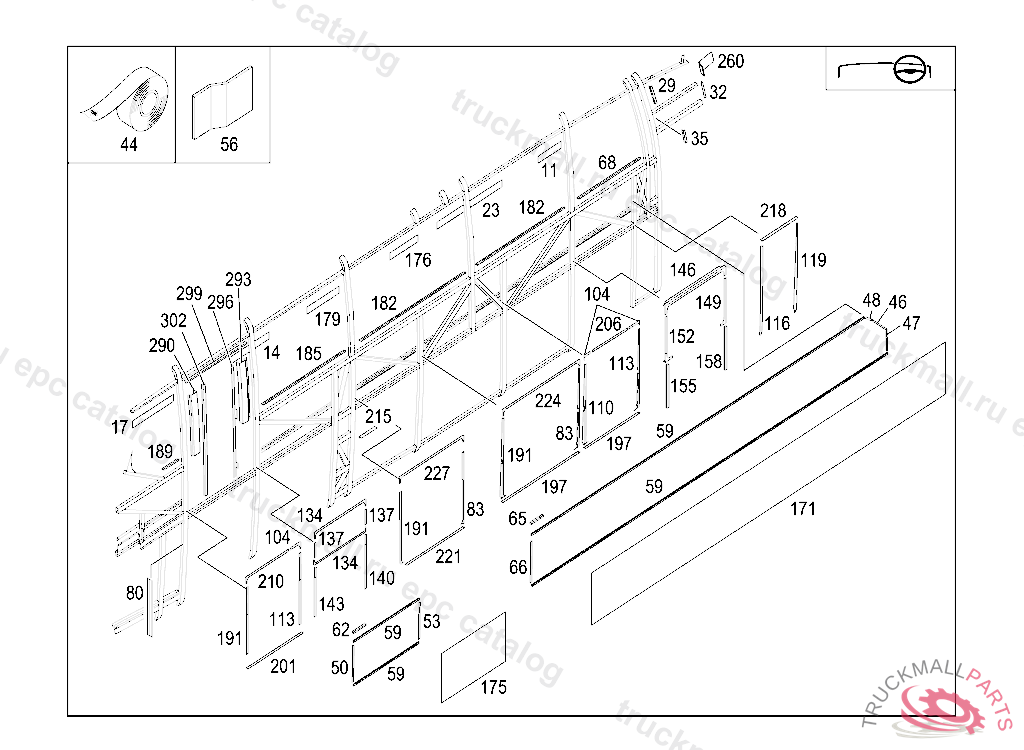

S 415 HD - 629.411 - 63 SIDE PANELS
Поз.
Артикул
Описание
11
PANELLING AIR INTAKE 199MM
14
PANELLING
17
PANELLING AIR INTAKE 199MM
23
PANELLING
29
ANGLE
32
ANGLE
35
ANGLE275LG
44
ADHESIVE TAPE ON BOTH SIDES 30MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
44
ADHESIVE TAPE
46
PAD
47
PAD
48
PAD
50
PAD
53
PAD
56
BRACKET150LG
59
PAD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
59
RAIL
62
PAD
65
PAD30MM
66
PAD
68
ANGLE SIDE WINDOW PANES 1735MM
80
ANGLE1000LG
83
ANGLE1090MM
104
REINFORCEMENT
110
ANGLE LEFT
113
ANGLE RIGHT
116
ANGLE
119
ANGLE1090LG
134
ANGLE TOP
137
ANGLE
140
ANGLE
143
ANGLE LATERAL
146
ANGLE TOP
146
ANGLE1074LG
149
ANGLE LATERAL
152
ANGLE LATERAL
155
ANGLE LATERAL
158
ANGLE
171
PANELLING
175
PANELLING
176
PANELLING
179
PANELLING AIR INTAKE 657MM
182
ANGLE2135LG
185
ANGLE1570MM
189
ANGLE
191
ANGLE1090LG
197
ANGLE BOTTOM 1474LG
201
ANGLE
201
ANGLE
206
ANGLE
210
ANGLE
210
ANGLE SIDE WINDOW PANES 805MM
215
ANGLE TOP 220LG
218
ANGLE TOP
221
ANGLE1254MM
224
ANGLE TOP 1474LG
227
ANGLE TOP 1254LG
260
ANGLE
290
PANELLING
293
PANELLING
296
ANGLE
299
ANGLE
302
ANGLE
