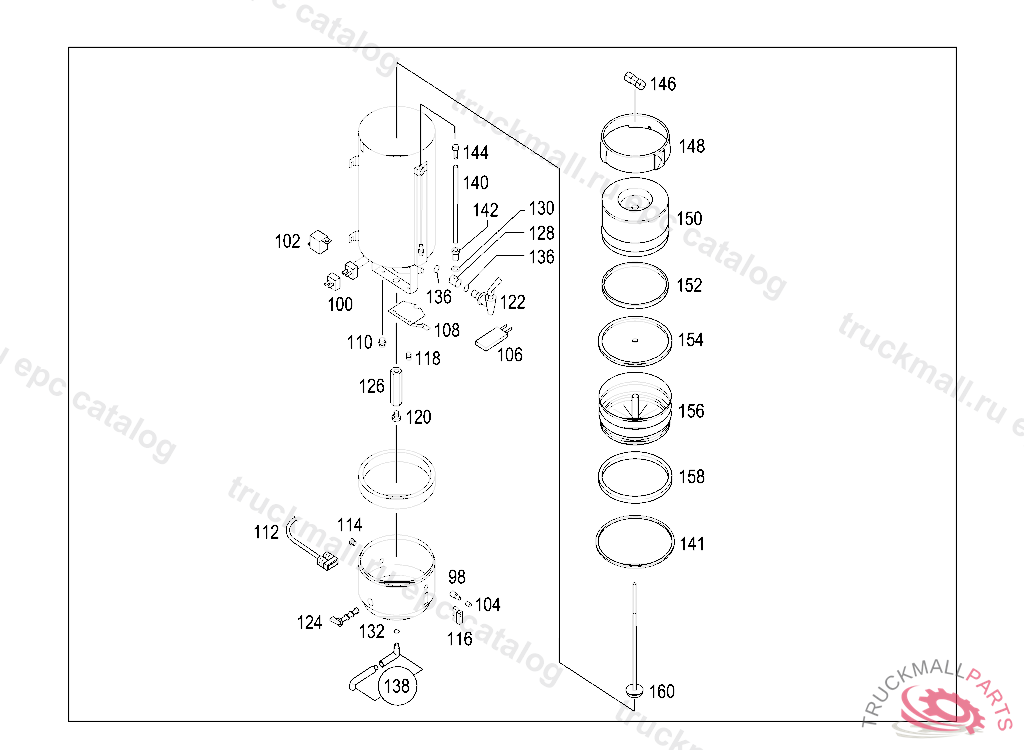

S 415 HDH - 629.421 - 84 TRUNKS AND CASES
Поз.
Артикул
Описание
98
INDICATOR LAMP
98
TELL-TALE LAMP
100
RELAY30/40A
100
RELAY , Replaced By: A0008201710
102
RELAY70A
102
RELAY , Replaced By: A0008219547
104
CAP GREEN
106
PCT CONTROLLER
108
PTC CONTROLLER WITH TELL-TALE LAMP
110
THERMOSTAT
110
THERMOSTAT WITH TELL-TALE LAMP
112
PLUG
114
SWITCH ON/OFF
116
SWITCH ON/OFF
116
SWITCH
118
SWITCH
118
TEMPERATURE LIMITER
120
ADAPTER
122
FUEL NOZZLE
122
FUEL NOZZLE
124
LEVER
124
TOMMY
126
BALL COCK
128
T-FITTING
128
T-FITTING
130
O-RING
130
O-RING
132
O-RING
136
RUBBER RING
136
SEAL RING
138
DISCHARGE
140
SCALE197MM
140
LEVEL GLASS197MM
141
GASKET FOR LEAKAGES
142
WASHER
144
PLUG
146
HANDLE
148
RING
150
COVER
150
HOUSING COVER
152
INSULATION
152
DAMPING RING
152
INSULATION138X130X1MM
154
COVER
154
COVER
156
FILTER CAN
156
VACUUM CAPSULE
158
SEAL RING
158
O-RING
160
RISING PIPE
160
TUBE
999
WASHER
999
KITCHENETTE
999
KITCHENETTE
999
HOUSING
999
COVER
999
CLIP
999
ELECTRIC CABLE
999
SWITCH
999
COUPLING
999
CONTROL UNIT
999
CONTROL UNIT CENTRAL LUBRICATION
999
CABLE HARNESS
999
CONNECTOR
999
HOSE SILICONE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
INTERIOR LAMP
999
FITTING
999
THROTTLE
999
WASHER
999
CLIP
999
CLIP
999
CONTAINER WATER RESERVOIR
999
CONTAINER
999
BRACKET LEFT
999
VALVE
999
RAIL
999
CUP DISPENSER
999
CUP HOLDER
999
COVERING
999
TAKE-UP DEVICE
999
HINGE
999
FITTING ELBOW FITTING
999
PLATE
999
FILL LEVEL SENSOR
999
HEATING ELEMENT
999
BOILER
999
BOILERVST
999
CONTINUOUS-FLOW HEATER
999
CONTINUOUS-FLOW HEATER
999
BOILER
999
CLUTCH
999
CABLE HARNESS
999
COVERING ASHTRAY
999
ASHTRAY
