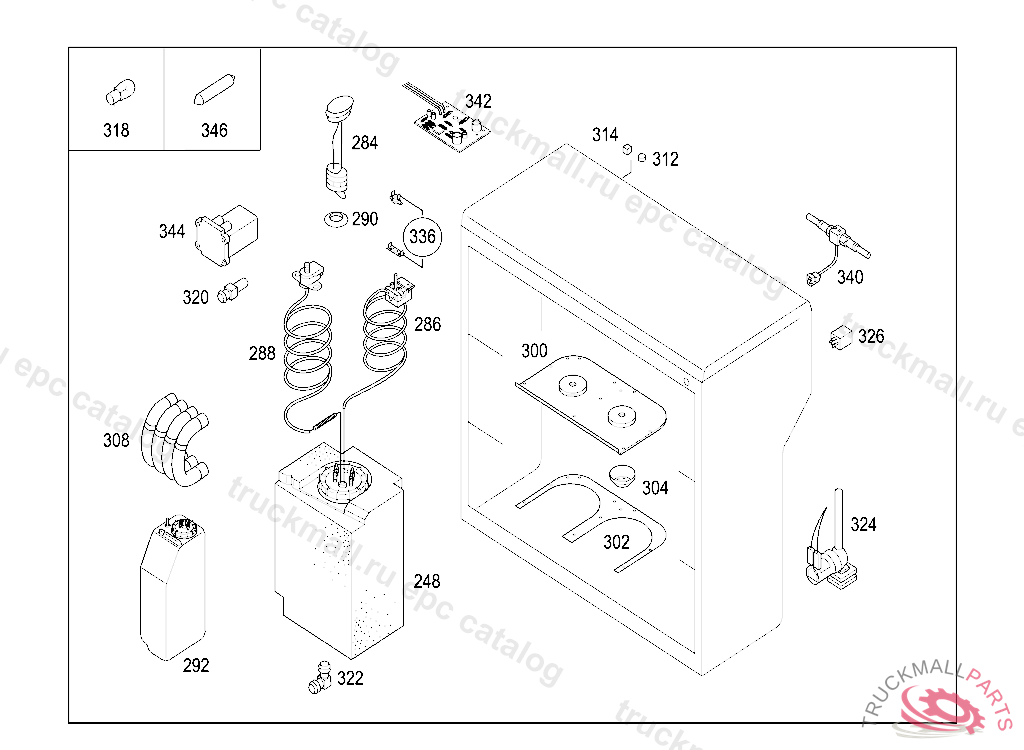

Поз.
Артикул
Описание
248
BOILERVST
248
COOKER
284
HEATING ELEMENT
286
SWITCH THERMOSTAT
286
SWITCH OVERHEATING
288
SWITCH
290
SEAL
292
RESERVOIR
300
TAKE-UP DEVICE UPPER PART
302
TAKE-UP DEVICE LOWER PART
304
SPRAY HEAD
308
HEATING ELEMENT24V/350W
312
KEY CAP BLUE
314
KEY CAP BEIGE
318
BULB
318
BULB24V/5W
320
VALVE (CHECK VALVE)
320
VALVE (CHECK VALVE)
322
PIPE SOCKET
324
SOLENOID VALVE
326
RELAY24V/50A
326
RELAY
326
RELAY24V/50A, Replaced By: A0009823723
326
RELAY24V / 40A, Replaced By: A0009823923
336
SWITCH
340
PULSE SENDER UNIT FLOW INDICATOR
342
PUMP INTERFERENCE SUPPRESSION
344
PUMP
346
LOCK RED 50A
346
LOCK RUSSET BROWN 5A
346
FUSE LINK IN FUSE BOX AND SPARE FUSE 7,5 A
346
FUSE WHITE 25A
346
LOCK GREEN 30A
999
WASHER
999
KITCHENETTE
999
KITCHENETTE
999
HOUSING
999
COVER
999
CLIP
999
ELECTRIC CABLE
999
SWITCH
999
COUPLING
999
CONTROL UNIT
999
CONTROL UNIT CENTRAL LUBRICATION
999
CABLE HARNESS
999
CONNECTOR
999
HOSE SILICONE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
INTERIOR LAMP
999
FITTING
999
THROTTLE
999
WASHER
999
CLIP
999
CLIP
999
CONTAINER WATER RESERVOIR
999
CONTAINER
999
BRACKET LEFT
999
VALVE
999
RAIL
999
CUP DISPENSER
999
CUP HOLDER
999
COVERING
999
TAKE-UP DEVICE
999
HINGE
999
FITTING ELBOW FITTING
999
PLATE
999
FILL LEVEL SENSOR
999
HEATING ELEMENT
999
BOILER
999
BOILERVST
999
CONTINUOUS-FLOW HEATER
999
CONTINUOUS-FLOW HEATER
999
BOILER
999
CLUTCH
999
CABLE HARNESS
999
COVERING ASHTRAY
999
ASHTRAY
