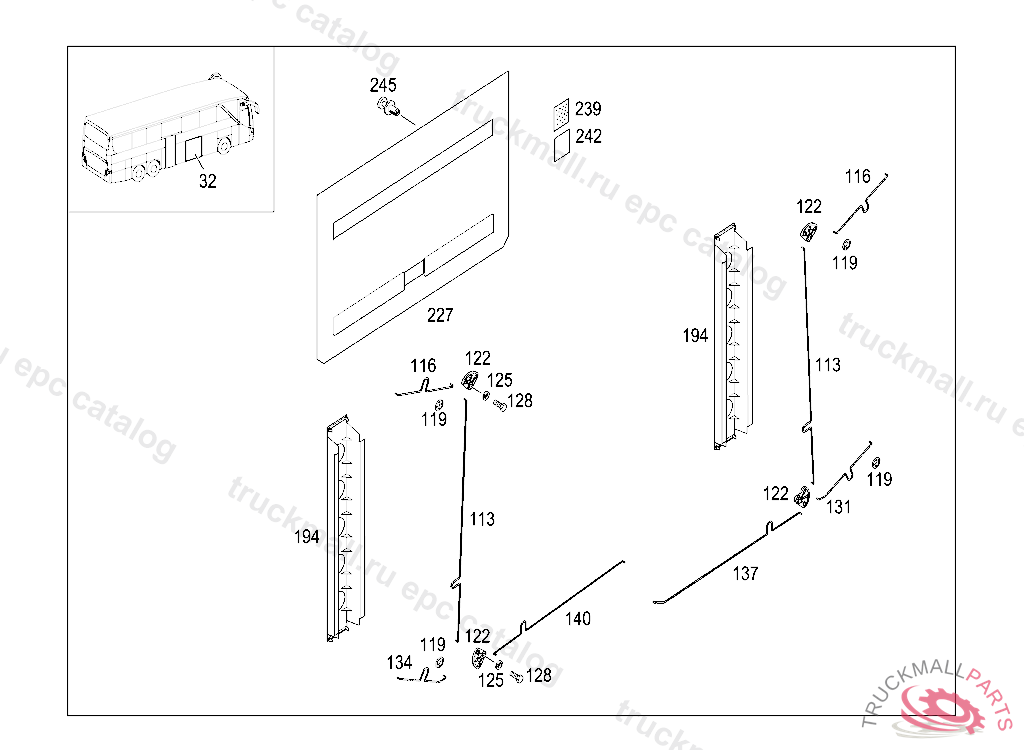

S 415 HDH - 629.421 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
113
ROD
116
RODL168 MM
119
LOCK
122
LEVER
125
WASHER
128
SCREW
131
ROD
134
ROD
137
RODL524 MM
137
RODL228 MM
137
RODL581 MM
137
RODL406 MM
137
RODL338 MM
137
RODL179 MM
137
RODL414 MM
137
RODL591 MM
140
RODL354MM
140
RODL538 MM
140
RODL426 MM
140
RODL176 MM
140
RODL362 MM
140
RODL471 MM
140
RODL286 MM
140
RODL528 MM
194
COVERING
227
COVERING
239
SOFT STRAP. BAND ADHESIVE FASTENER, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
242
HOOK STRAP. BAND ADHESIVE FASTENER, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
245
RIVET COVERING TO BRACKET
245
EXPANSION RIVET. CLIP
