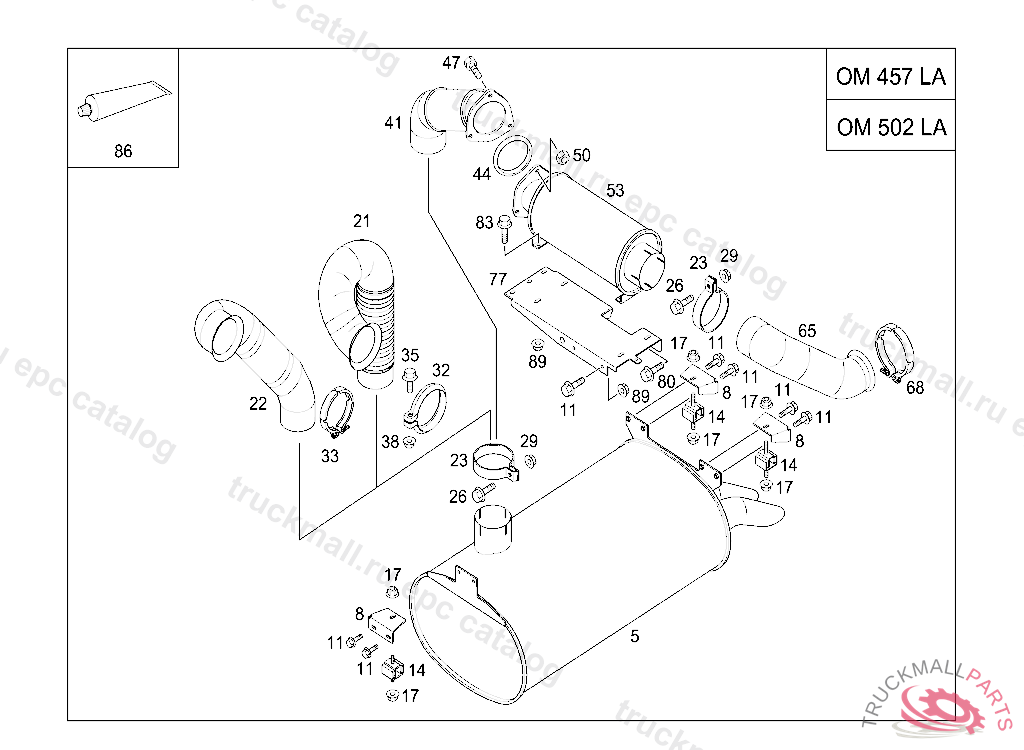

Поз.
Артикул
Описание
5
MUFFLER. EXHAUST MUFFLER
8
BRACKET
11
SCREW BRACKET TO CAB REAR PANEL M 8X20
14
RUBBER MOUNTING
17
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
21
EXHAUST PIPE
21
EXHAUST PIPED120, Replaced By: A6294901910
21
EXHAUST PIPE , Replaced By: A6294902310
22
EXHAUST PIPE
23
CLAMP , Replaced By: N071555124501
23
CLAMP EXHAUST SYSTEM D124,5MM, Replaced By: A6554920140
23
CLAMP
26
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
26
SCREW BRACKET TO SIDE MEMBER M10X35
29
NUT , Replaced By: N913023010002
32
CLAMPD162
32
CLAMPD148
32
CLAMP FRONT EXHAUST PIPE TO THROTTLE HOUSING, Replaced By: A9429950033
33
CLAMP THROTTLE HOUSING TO EXHAUST COLLECTOR PIPE
35
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
38
NUT HORN TO BRACKET M8
41
EXHAUST PIPE
44
FLANGE GASKET EXHAUST LINE FLEXIBLE METAL TUBE
47
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
50
NUT SUPPORT TO SIDE MEMBER
53
MUFFLER
65
EXHAUST PIPE
68
CLAMPD148
68
CLAMP FRONT EXHAUST PIPE TO THROTTLE HOUSING
77
CONSOLE
80
SCREW EXHAUST PIPE,FRONT,ON FLYWHEEL HOUSING
80
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 16X25
83
SCREW , Replaced By: N910143008000
86
ADHESIVE THREAD LOCK 50G
89
NUT HORN TO BRACKET M8
