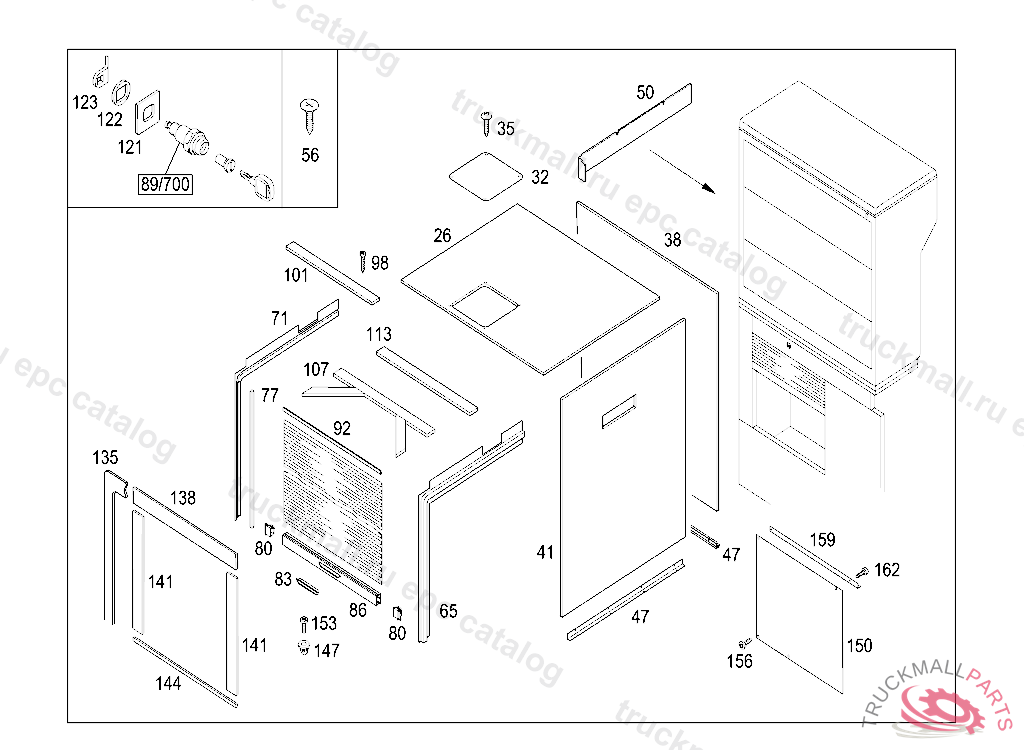

Поз.
Артикул
Описание
26
PLATE
32
COVER
35
TAPPING SCREW BRACKET MOUNTING
38
REAR PANEL
41
PANELLING
47
LEDGE
50
PANELLING
56
TAPPING SCREW3,5X13
56
SHEET METAL SCREW. SCREW
65
RAIL
65
RAIL LEFT
71
RAIL
71
RAIL RIGHT
77
LEDGE
77
LEDGE
80
SPACER
83
SHELL-TYPE HANDLE
83
SHELL-TYPE HANDLE
86
LEDGE
86
LEDGE
92
RETRACTABLE COVER PROFILEL613 MM
92
DOOR
98
TAPPING SCREW3,5X16MM
98
SHEET METAL SCREW. SCREW
101
PLYWOOD
107
LEDGE
113
LEDGE50 X 590 MM
121
PLATE
122
WASHER
123
SNAP LOCK
135
PLYWOOD WOOD VENEER 2500X1530X8MM,ACAJOU-ACAJOU, TO BE ADAPTED DURING ASSEMBLY
138
LEDGE
141
LEDGE
144
LEDGE
147
NUTM8
150
COVER
153
HEXALOBULAR BOLTM8X16
156
TAPPING SCREW COVER AND BRACKET TO CAB CORNER PILLAR
159
ATTACHMENT ANGLE BRACKET , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.10.2008
162
SHEET METAL SCREW BRACKET TO FLOOR PLATE
999
SPRING NUTDM 4
999
MOUNTING CLIP
999
ADHESIVE THREAD LOCK 50G
999
ELECTRICAL WIRING HARNESS FOR COVER
999
ELECTRICAL WIRING HARNESSFUER BUSADAPTER
999
ELECTRICAL WIRING HARNESS FOR INNER MEMBER
999
FABRICNADELFILZ, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
