Поз.
Артикул
Описание

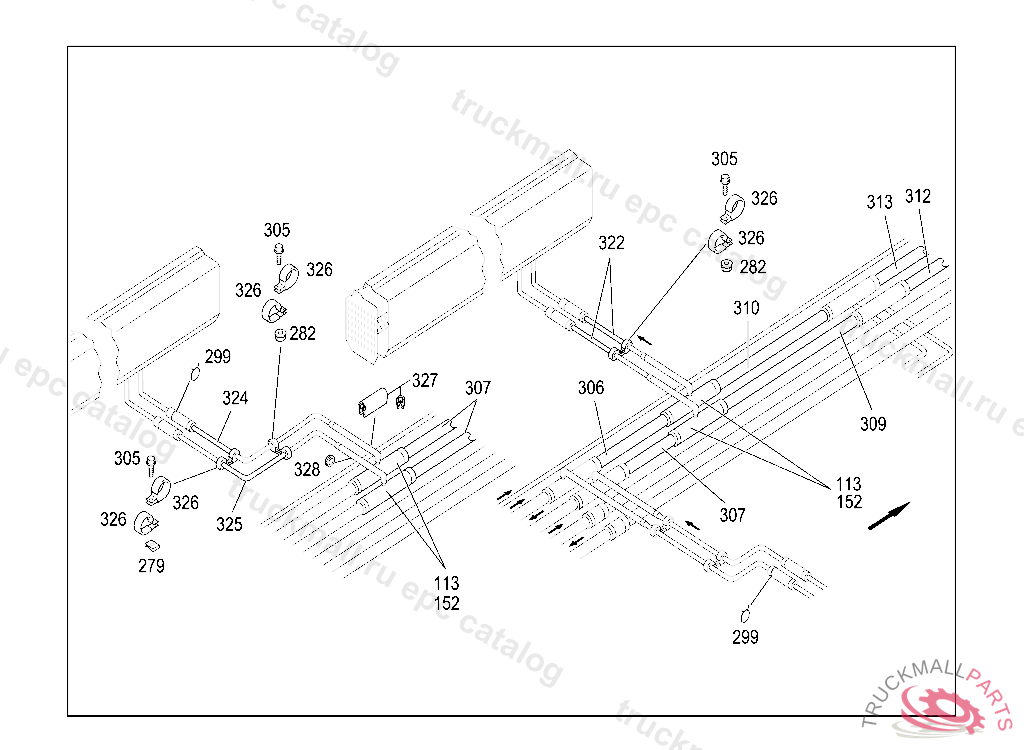

113
DISTRIBUTORD38/15/38-248MM
152
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
279
LOCK. NUT , Replaced By: A0039941745
279
LOCK NUT. SPRING NUT MOUNTING PARTS
282
NUT , Replaced By: N913023006001
299
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
299
HOSE CLAMP. HOSE CLAMP , Replaced By: N000000000666
305
SCREW BRACKET AND CLAMP M6X20
306
PIPE LINED38/1220MM
307
HEATING PIPED38/1120MM
309
HEATING PIPED38/430MM
310
PIPE LINE
312
PIPE LINED38/3010MM
313
PIPE LINE3075LG
322
HEATING PIPE1000MM
326
CLAMP LINE MOUNTING
327
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
