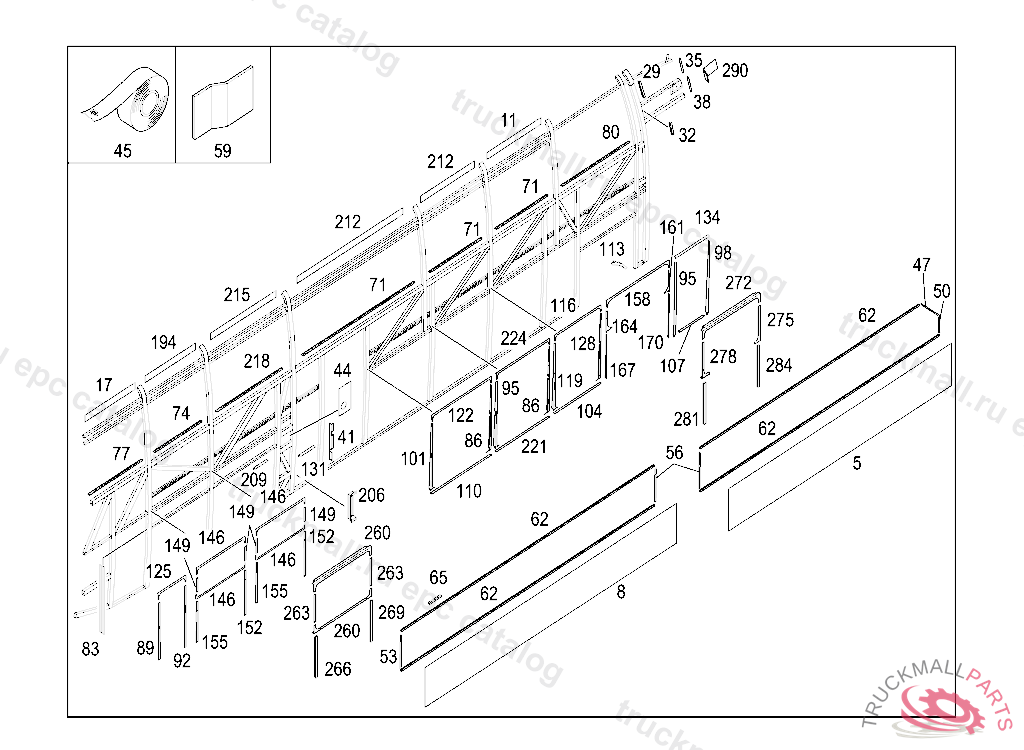

S 417 HDH - 629.422 - 63 SIDE PANELS
Поз.
Артикул
Описание
5
PANELLING
5
PANELLING
8
PANELLING REAR
8
PANELLING REAR
11
PANELLING AIR INTAKE 199MM
17
PANELLING AIR INTAKE 199MM
29
ANGLE389MM
32
ANGLE296MM
35
ANGLE105LG
38
ANGLE
41
ANGLE NUR TUER B
44
PANELLING SPRING CARRIER
44
PANELLING SPRING CARRIER
45
ADHESIVE TAPE
45
ADHESIVE TAPE ON BOTH SIDES 30MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
47
PAD
50
PAD B-SAEULE
53
PAD
56
PAD
59
BRACKET150LG
62
PAD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
65
PAD
71
ANGLE1740MM
71
ANGLE2040MM
74
ANGLE1270MM
77
ANGLE SIDE WINDOW PANES 1425MM
80
ANGLE SIDE WINDOW PANES 1735MM
83
ANGLE
86
ANGLE
89
ANGLE
92
ANGLE
95
ANGLE
98
ANGLE
101
ANGLE
104
ANGLE
107
ANGLE BOTTOM
110
ANGLE BOTTOM 984 MM
113
REINFORCEMENT
116
ANGLE
119
ANGLE
122
ANGLE TOP 984 MM
125
ANGLE
128
ANGLE
131
ANGLE TOP 180LG
134
ANGLE TOP 534MM
146
ANGLE TOP
149
ANGLE
152
ANGLE
155
ANGLE LATERAL
158
ANGLE TOP
161
ANGLE
164
ANGLE
167
ANGLE LATERAL
170
ANGLE
194
PANELLING
206
COVERING
209
ANGLE
212
PANELLING AIR INTAKE 1042MM
215
PANELLING1329MM
218
ANGLE1270MM
218
ANGLE1570MM
221
ANGLE
221
ANGLE
224
ANGLE
224
ANGLE
260
ANGLE1074LG
263
ANGLE
266
ANGLE LATERAL
269
ANGLE
272
ANGLE1074LG
275
ANGLE
278
ANGLE
281
ANGLE LATERAL
284
ANGLE
290
ANGLE
