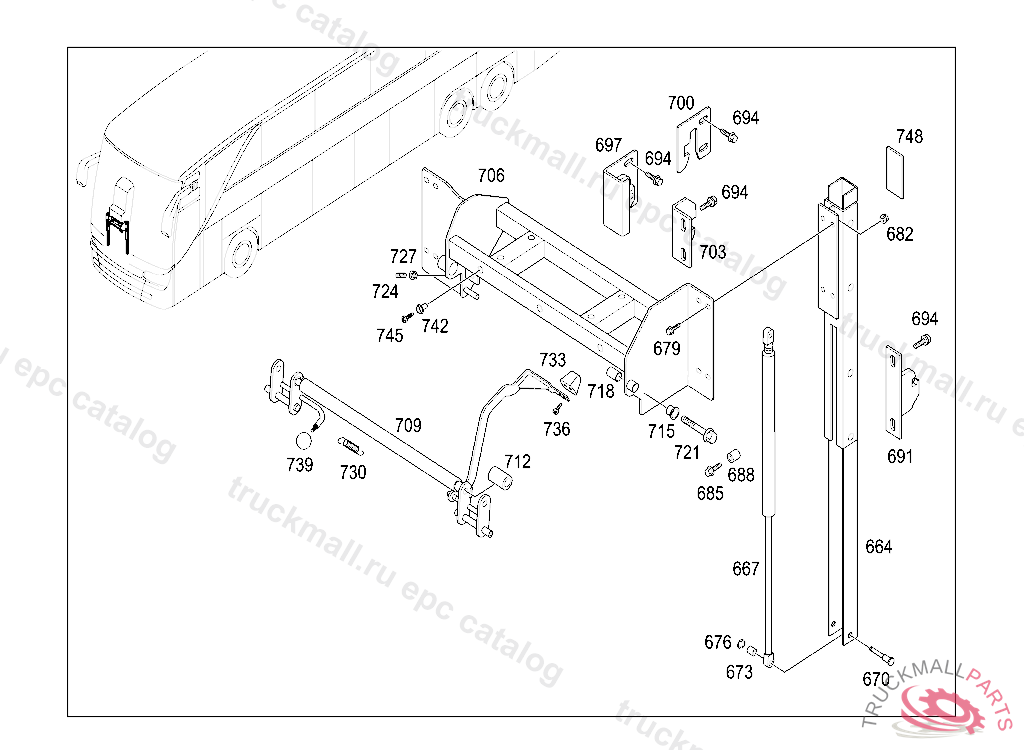

S 416 HDH - 629.425 - 91 FRONT SEATS
Поз.
Артикул
Описание
664
RAIL
667
SPRING
670
PIN
673
SLEEVE
676
WASHER
679
SCREW BRACKET TO CAB REAR PANEL M 8X20
682
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
685
BOLT. SCREWM8X30MM
688
SLEEVE
691
DETENT
694
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
697
DETENT
700
DETENT
703
DETENT
706
SUPPORT
709
TUBE
712
BUSHING
715
BUSHING
718
BUSHING
721
SCREW SHIM TO BRACKET
724
THREADED PIN
727
NUT , Replaced By: N913023010002
730
TENSION SPRING
730
SPRING TENSION SPRING
733
HANDLE
736
SCREW
739
BALL KNOB
742
FASTENER BUTTON
745
TAPPING SCREW BRACKET MOUNTING
748
UNDERLAYER
999
GEAR
999
SPINDLE
999
DRIVE SHAFT
