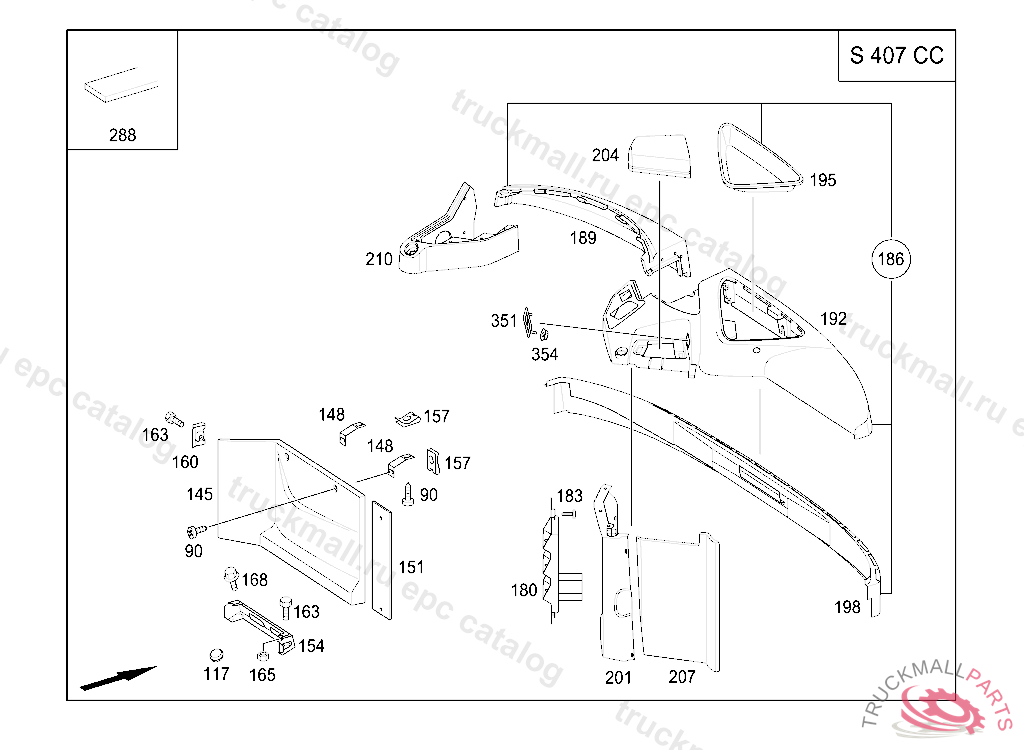

Поз.
Артикул
Описание
90
TAPPING SCREW
90
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
117
GROMMET
145
COVERING
148
ATTACHMENT ANGLE BRACKET
151
COVER MOLDING
154
CONSOLE DEEP FREEZER
157
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
160
CLOP NUT
163
SCREWM6X65
163
SCREW BRACKET AND CLAMP M6X20
165
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
168
SCREW PIPE ELBOW TO BRACKET M8X12
180
RETAINING PLATE
183
TAPPING SCREW BRACKET MOUNTING
186
COWLING COCKPIT AREA
189
COWLING COCKPIT AREA LEFT
192
COWLING COCKPIT AREA RIGHT
195
STORAGE TRAY
198
AIR DUCT
201
TRIM PANEL CENTER CONSOLE
204
COVER
207
COVER
210
COWLING COCKPIT AREA
288
FELT STRIP SELF-ADHESIVE 15X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
351
FASTENING PLATE
354
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
