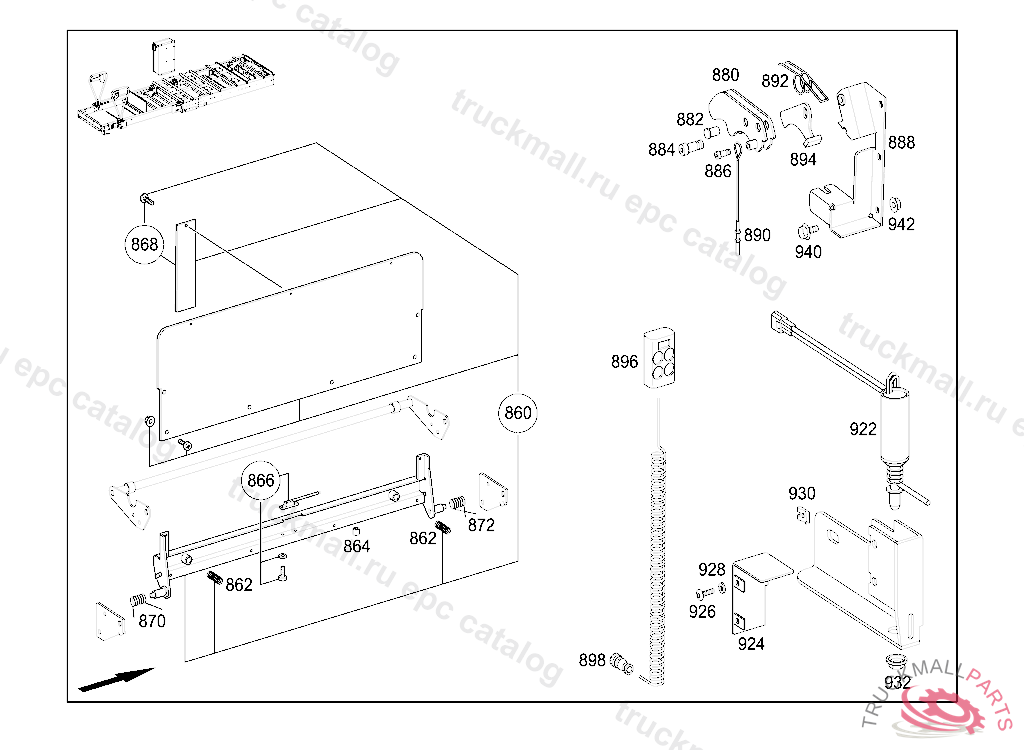

S 407 CC USA EPA 10 - 629.540 - 66 INSTALLATIONS
Поз.
Артикул
Описание
860
FOOTPLATE
862
PRESSURE SPRING
864
BUSHING
866
CONTACT SWITCH
868
GUIDE PLATE
870
SPRINGS
872
SPRINGS
880
ACTUATING LEVER
882
BEARING BOLT
884
FITTED BOLT
886
FITTED BOLT
888
BRACKET
890
CONTROL CABLE
892
TORSION SPRING
894
ACTUATING LEVER
896
CONTROL
898
COILED LINE, SPIRAL CABLE
922
SOLENOID
924
COVER
926
FILLISTER HEAD SCREW10-24X1/2"
928
WASHER0.219"X0.5"X0.49"
930
SPRING NUT
932
BUSHING
940
SCREW BRACKET TO CAB REAR PANEL M 8X20
942
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
