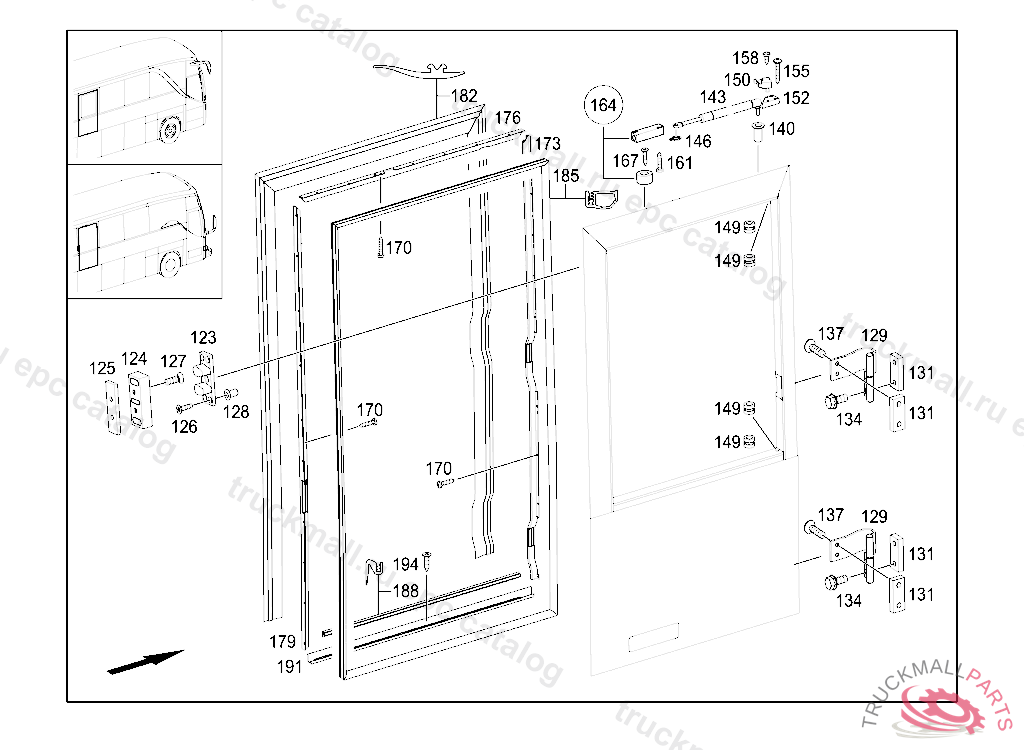

S 407 CC USA EPA 10 - 629.540 - 73 DOORS
Поз.
Артикул
Описание
123
GUIDE BOTTOM
124
GUIDE ,070362
125
THREADED PLATE
126
SCREWM4X16
127
SCREWM5X16
128
RIVET NUTM4X10
129
HINGE
131
PLATE
134
SCREW BRACKET TO CAB REAR PANEL M 8X20
137
SCREW. HEXAL. SOCKET CSK. BOLTM8X30
140
RIVET NUT. RIVETED NUT CONNECTING PIPE TO CAB CROSS MEMBER
143
SPRING
146
LOCK RING PUSH ROD TO PEDAL
149
GROMMET8MM
150
SWITCH
152
PAD
155
TAPPING SCREW3.5X22
158
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
161
TAPPING SCREW SWITCH TO BRACKET MBN 10169-ST3.5X16-C
164
SOLENOID SWITCH
167
TAPPING SCREW3,5X16MM
170
TAPPING SCREW CLOTHES-HOOK TO BODY
173
SEALING RAIL RIGHT
176
RAIL TOP
179
SEALING RAIL LEFT
179
SEALING RAIL LEFT
182
SEAL INSIDE
185
SEAL OUTSIDE
188
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
191
RAIL BOTTOM
194
TAPPING SCREW4,2X16
