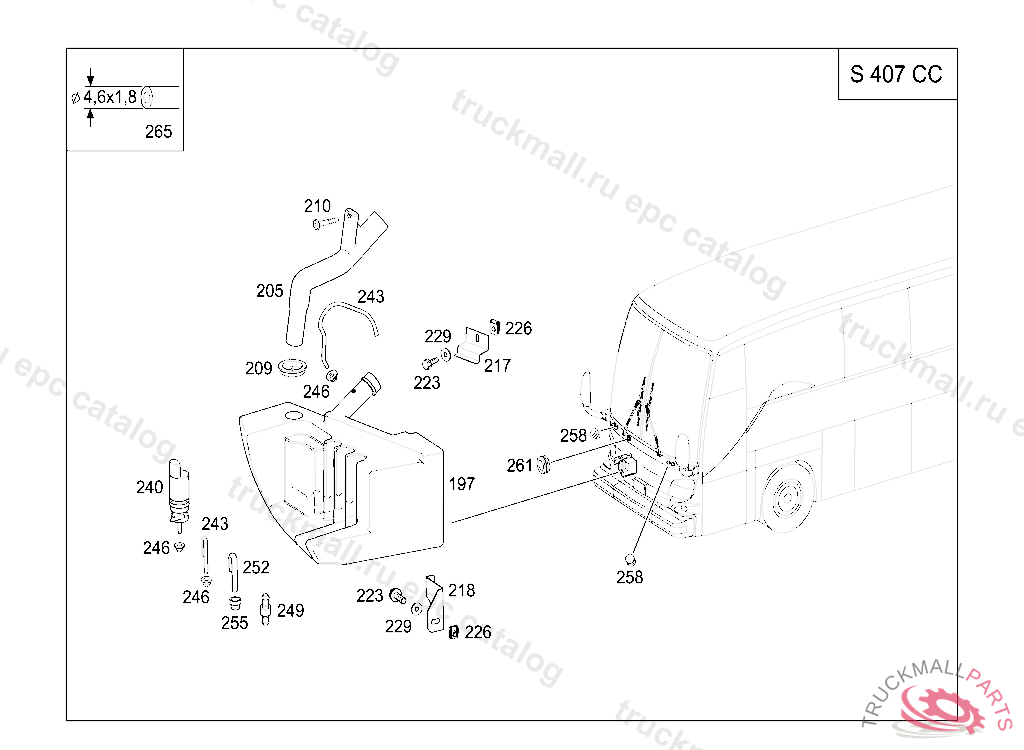

Поз.
Артикул
Описание
197
RESERVOIR WIPER FLUID TANK 22L BR400
205
PIPE SOCKET
209
GROMMET
210
SCREWM 6X35
217
BRACKET WATER RESERVOIR
218
BRACKET WATER RESERVOIR
223
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
226
SPRING-THREAD NUT PROTECTIVE PLATE
229
WASHER BRACKET TO CAB REAR PANEL
240
CENTRIFUGAL PUMP , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.12.2008
243
HOSE PANE WASHER 5X1.5MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
246
SEAL PUMP TO RESERVOIR
249
VALVE
249
VALVE
252
HOSE ASSEMBLY. HOSE8X2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
255
GROMMET
258
GROMMET
261
GROMMET
265
HOSE FROM RIGHT NOZZLE TO CHECK VALVE 900 MM
