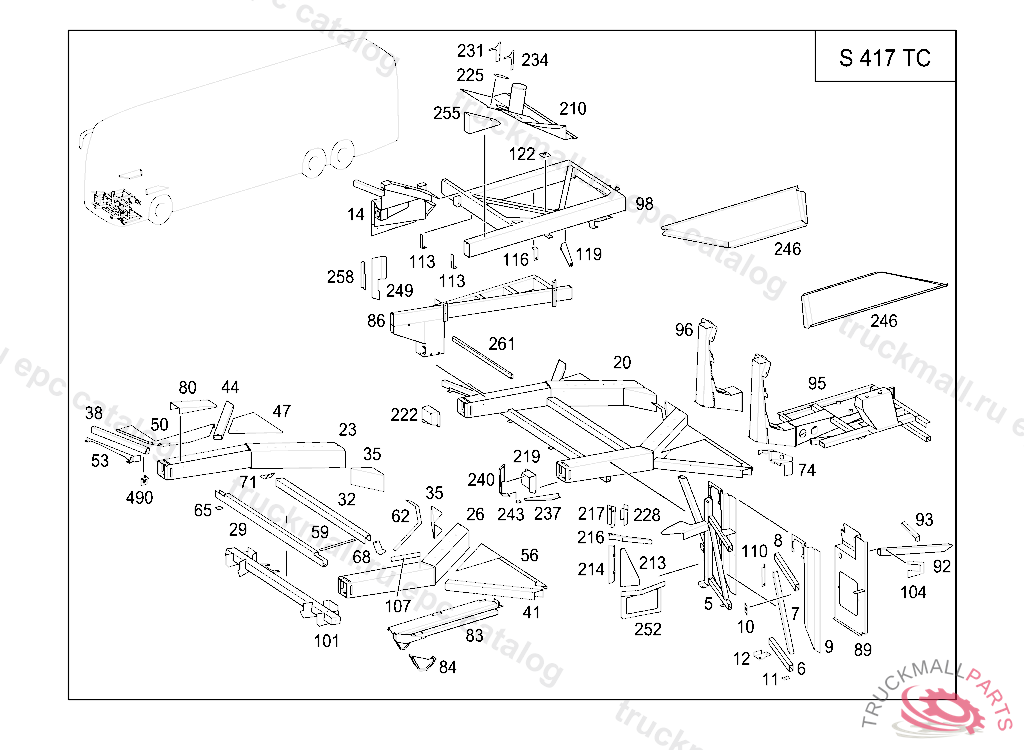

S 417 TC USA EPA 10 - 629.557 - 61 SUBSTRUCTURE
Поз.
Артикул
Описание
5
CROSS MEMBER LEFT 1
5
CROSS MEMBER LEFT 1
6
BEAM
7
DIAGONAL STRUT
8
STRUT
9
CONSOLE
10
BRACKET
11
BRACKET
12
BRACKET
14
CROSS MEMBER RIGHT 1
20
FRAME BOTTOM
23
ENTRANCE SUPPORT
26
ENTRANCE SUPPORT
29
SUPPORT
32
SUPPORT
35
REINFORCEMENT
38
DIAGONAL STRUT
41
BEAM
44
SUPPORT
47
WEB
50
COVER
53
REST ANGLE
56
REINFORCEMENT PLATE
59
SUPPORT PLATE
62
SUPPORT PLATE
65
BRACKET
68
REINFORCEMENT PLATE
71
REINFORCEMENT PLATE
74
GUSSET PLATE
80
GUSSET PLATE
83
BEAM LEFT DOOR SILL
84
BEAM
86
LONGITUDINAL MEMBER RIGHT
89
REINFORCEMENT PLATE ELECTRICAL COMPARTMENT
89
BOX PANELING ELECTRICAL COMPARTMENT
92
DIAGONAL STRUT
93
DIAGONAL STRUT
95
SUPPORTING MEMBER
95
SUPPORTING MEMBER
96
BEAM
98
BEAM
101
BEAM TOWING ATTACHMENT
104
SUPPORT PLATE
107
SUPPORTING RAIL
110
REST ANGLE
113
ATTACHMENT ANGLE BRACKET
116
ATTACHMENT ANGLE BRACKET
119
BRACKET VALVE PLATE
122
BRACKET
210
FLOOR PANEL TOEBOARD,LEFT
213
CONSOLE MITER GEARING
214
GUSSET PLATE
216
CONSOLE MITER GEARING
217
CONNECTING MEMBER
219
CONNECTING CARRIER LEFT
222
CONNECTING CARRIER RIGHT
225
COVER PLATE
228
SUPPORT
231
REINFORCEMENT , Replaced By: A6326123025
231
REINFORCEMENT
234
REINFORCEMENT
234
REINFORCEMENT , Replaced By: A6326123025
237
REST ANGLE
240
REST ANGLE
243
REST ANGLE
246
RECESS ABOVE FRONT AXLE
249
REINFORCEMENT
252
CONSOLE
255
CONSOLE
258
ATTACHMENT ANGLE BRACKET
261
BEAM FRONT COVER
490
BRACKET
