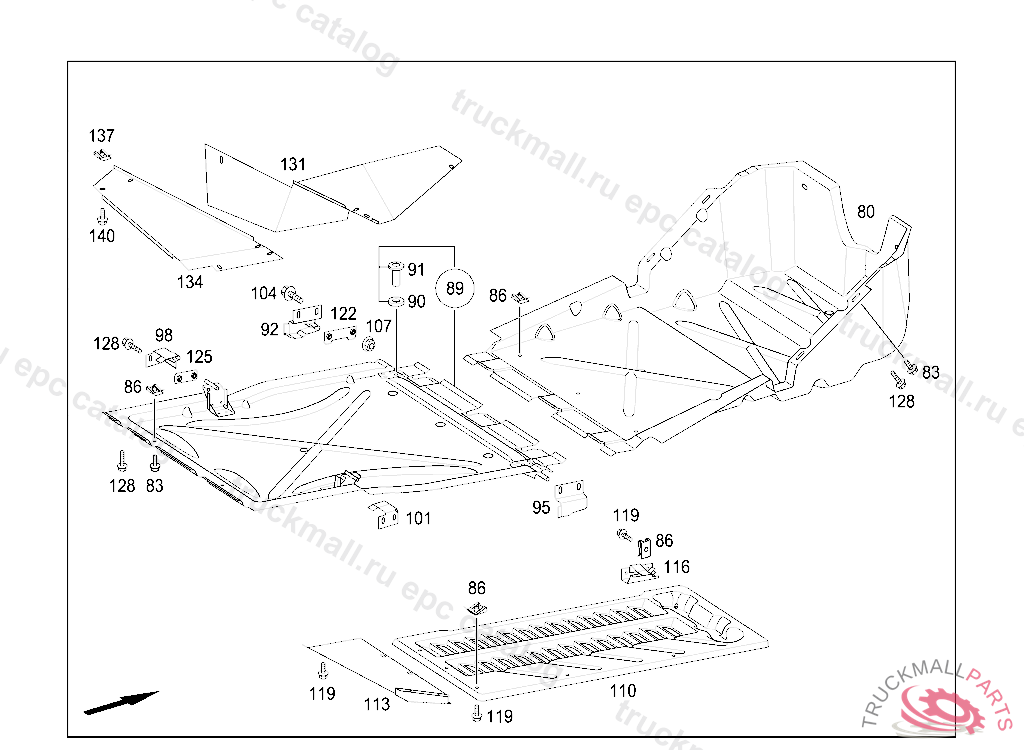

S 417 TC USA EPA 10 - 629.557 - 68 PANELLING AND LINING
Поз.
Артикул
Описание
80
COVER BELOW TRANSMISSION
83
SCREW , Replaced By: N910143008000
86
NUT
89
COVER
90
WASHER
91
RIVET
92
CONSOLE LEFT FRONT
95
CONSOLE RIGHT FRONT
98
CONSOLE LEFT REAR
101
CONSOLE RIGHT REAR
104
SCREW BRACKET TO CAB REAR PANEL M 8X20
107
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
110
COVER BELOW RADIATOR
113
MOUNTING PLATE BELOW RADIATOR
116
GUIDE RAIL
119
COMBINATION BOLTM 8 X 20
122
RETAINING PLATE
125
RETAINING PLATE
128
SCREW-AND-WASHER ASSEMBLYM8X25
131
COVER TAIL PIPE
134
COVER TAIL PIPE
137
LOCK. NUT , Replaced By: A0039941745
140
COMBINATION BOLT. SCREW-AND-WASHER ASSEMBLYM6X20
