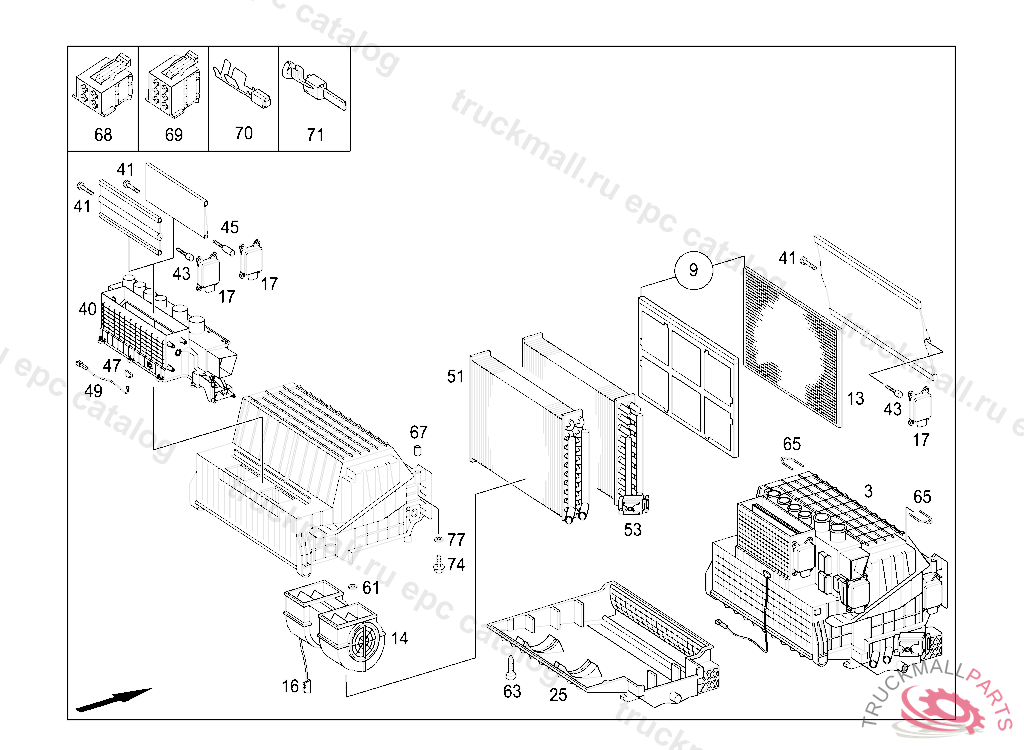

S 417 TC USA EPA 10 - 629.557 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
3
FRONT CABINETBEHR
9
FRAME WITH FILTER ELEMENT BEHR
13
FILTER
14
RADIAL BLOWER
16
CABLE HARNESS BLOWER BEHR
17
SERVO-D.C. W.GEARBOX
25
HOUSING LOWER PART BEHR
40
AIR DISTRIBUTOR
41
MOUNTINGBEHR
43
CONNECTOR SHORT BEHR
45
CONNECTOR LONG
47
SENSOR
49
CABLE HARNESS
51
HEAT EXCHANGERBEHR
53
AIR CONDITIONERBEHR
61
SHIMBEHR
63
SCREWM4X14,BEHR
65
BRACKET FUSE
67
SLEEVEBEHR
68
PLUG
69
PIN BUSHING HOUSING 6-POLE
70
CONTACT SPRING0,2-0,5 MM2
71
PLUG0,5 - 1,0 MM2
74
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
77
DISK SURFACE,FREE OF BURRS 32/8.5/3
