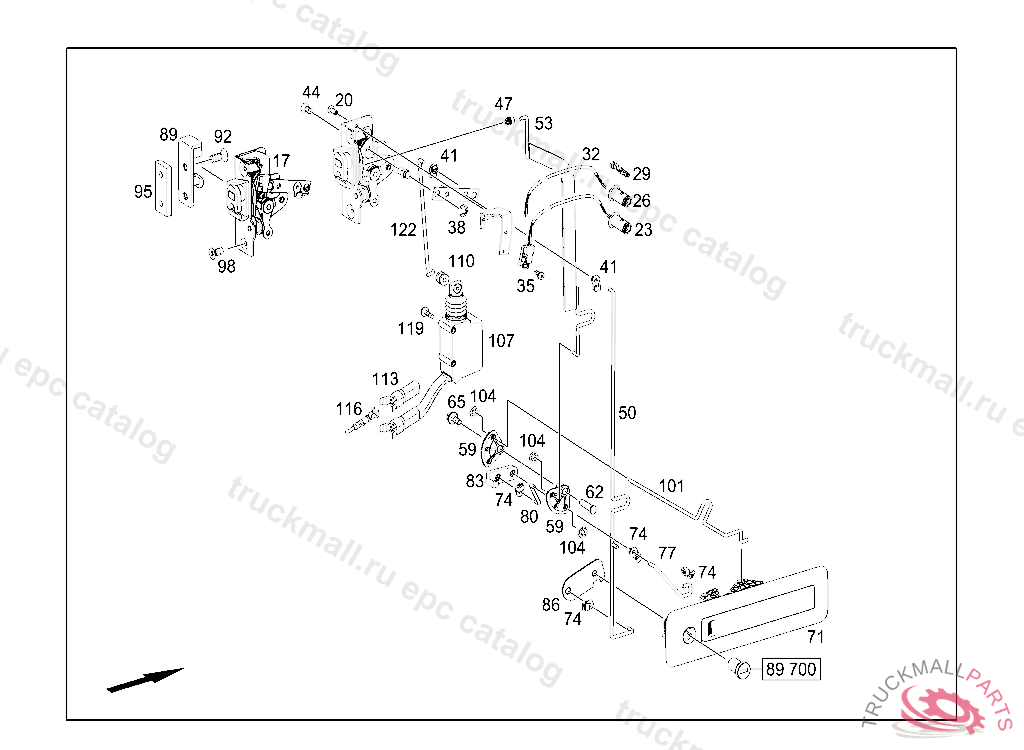

S 417 TC USA EPA 10 - 629.557 - 73 DOORS
Поз.
Артикул
Описание
17
DOOR LOCK
20
BLIND RIVET
23
SWITCH MICRO-SWITCH
26
SOCKET HOUSING. PLUG
29
ROUND PIN BUSHING
32
INSULATING HOSE4 X 0.5 MM, ORDER BY THE METER
35
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
38
LOCKING WASHER. LOCK PLATE CLUTCH PEDAL RESET
41
CLIP HAND BRAKE CABLE,625236
44
SCREW
47
CLIP
50
LINK ROD
53
OPERATING ROD
59
LEVER
62
PIN
65
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
71
HANDLE
74
CLIP HAND BRAKE CABLE,625236
77
LINK
80
LINK
83
SPACER
86
END PIECE
89
LOCKING EYE
92
SCREWM8X20TX45
95
PLATE
98
SCREW
98
SCREWM6X12 TX30
101
LINK
104
LOCK
107
ELECTRIC MOTOR
110
RUBBER SLEEVE
113
PIN BUSHING HOUSINGTO A 000 820 19 08
116
CONTACT SPRING
119
TAPPING SCREW3.5X16
122
PULL ROD
