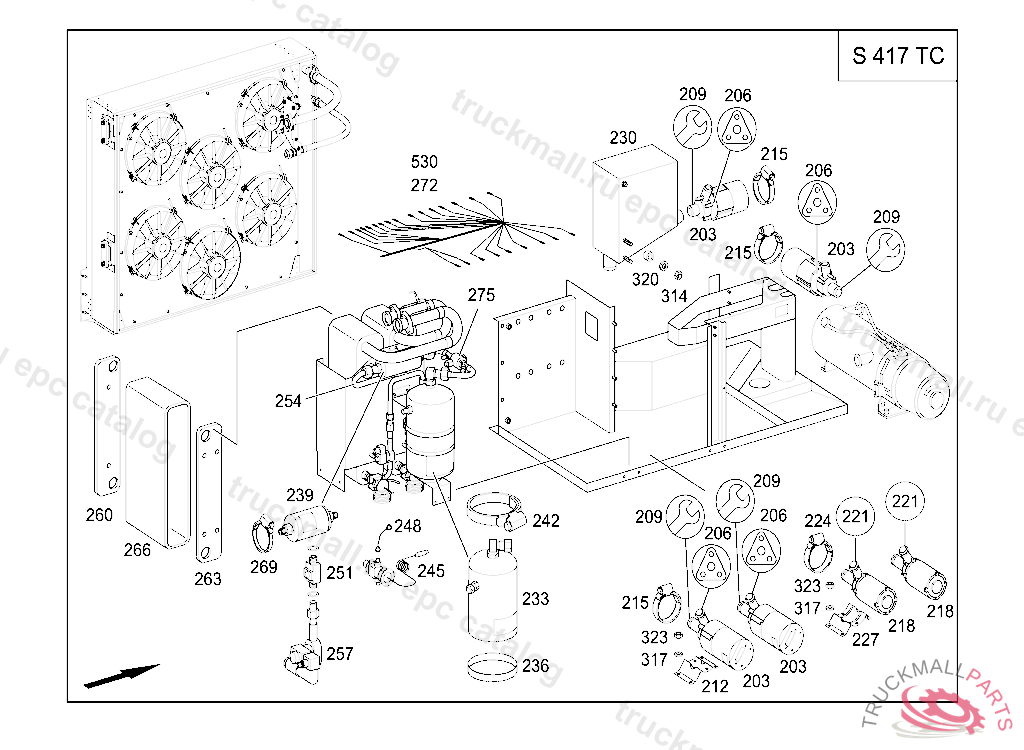

Поз.
Артикул
Описание
203
PUMP CIRCULATION PUMP 2,U4856
206
GASKET KIT REPAIR KIT
209
REPAIR KIT PUMP COVER
212
SUPPORT CIRCULATION PUMP
215
CLAMP , Replaced By: A0059972990
218
PUMP CIRCULATION PUMP 1,U4854
221
COUPLING PARTS KIT
224
CLAMP HOSE TO RETARDER 60-80X13 MM
227
SUPPORT
230
TANK WITH VALVE
233
TANK
236
RETAINING RING
239
DEHYDRATOR
242
CLAMP180-200X12MM
245
VALVE EXPANSION VALVE
248
PIPE LINE CAPILLARY TUBE
251
SIGHT GLASS
254
REFRIGERANT LINE
257
REFRIGERANT LINE WITH MAGNET
260
INSULATION
263
INSULATION
266
INSULATION
269
CLAMP HOSE 70-90X13 MM
272
CABLE HARNESS BETWEEN CONDENSER AND WATER DISTRIBUTION STATION
275
REFRIGERANT LINE
314
NUT HORN TO BRACKET M8
317
WASHER BRACKET TO BATTERY CASE BRACKET
320
WASHER LINE MOUNTING
323
NUT RELAY TO BRACKET M5
530
CABLE HARNESS BETWEEN CONDENSER AND WATER DISTRIBUTION STATION
999
SEAL
999
BLIND RIVET4X7,6MM
