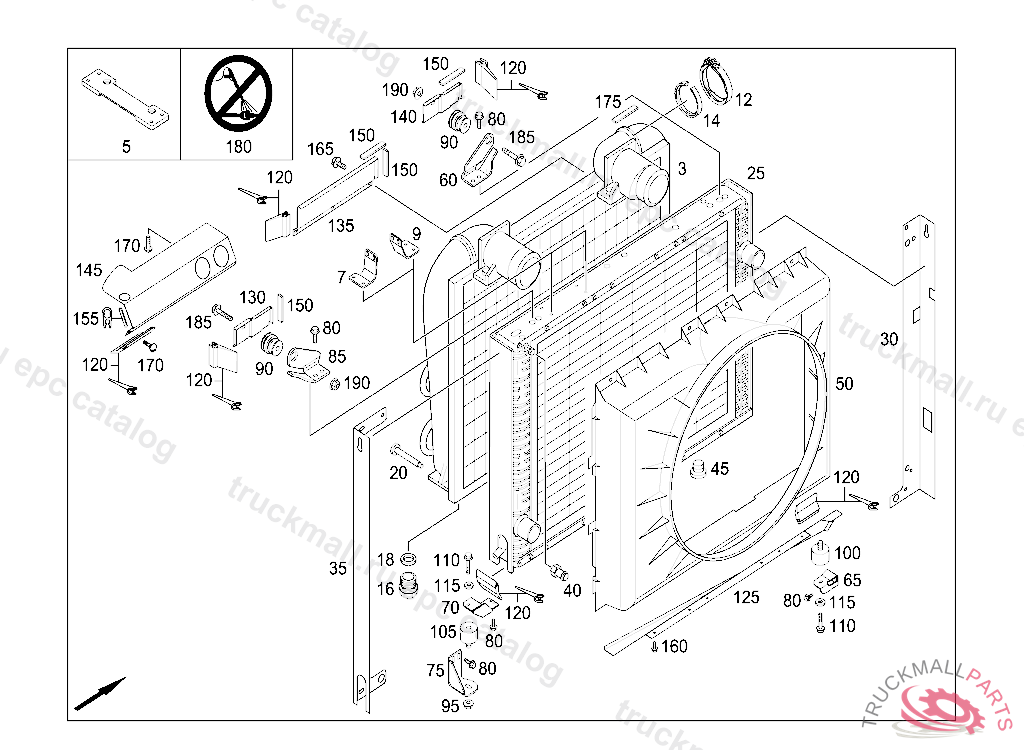

Поз.
Артикул
Описание
3
RADIATOR CHARGE AIR COOLER, AIR-COOLED, AS OF PRODUCTION BREAKPOINT DATE 03.04.06
5
BRACKET
7
BRACKET
9
BRACKET
12
HOSE CLAMP
14
SEAL RING
16
SCREW PLUG
18
SEAL RINGTO 001 431 72 14
20
FIT BOLT
25
COOLANT RADIATOR AIR-COOLED
25
RADIATOR, AIR-COOLED AIR-COOLED, Replaced By: A0025012201
30
COVER PLATE
35
COVER PLATE
40
VENTILATION NECK
40
BREATHER PIPE , Replaced By: A0009973464
45
SCREW DRAIN PLUG
50
FAN SHROUD
60
BRACKET TOP,REAR
65
CONSOLE
70
BRACKET
75
SUPPORTING PLATE
80
SCREWM 10X20
85
BRACKET TOP FRONT
90
DAMPER ELEMENT RADIATOR MOUNTING,TOP
95
NUT. HEXAGON NUT STRAP TO CONSOLE M12X1.5
100
RUBBER BUFFER
105
RUBBER MOUNTM12X70X45
110
SCREW BRACKET TO LEFT SIDE MEMBER
115
WASHER BATTERY CASE TO SIDE MEMBER
120
RUBBER PROFILE BLACK, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
125
RADIATOR SHUTTER BOTTOM
130
RADIATOR SHUTTER TOP FRONT
135
RADIATOR SHUTTER TOP CENTER
140
RADIATOR SHUTTER TOP,REAR
145
RADIATOR SHUTTER TOP SMALL,RIGHT LARGE BORES
150
MOSS TYPE RUBBER SELF-ADHESIVE ON ONE SIDE 3X22MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
155
EDGE GUARD SECTION , ORDER BY THE METER
160
HEXAGON HEAD BOLT
160
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
165
HEXAGON HEAD BOLT
170
SCREWM 8X22, T40
175
SEAL SELF-ADHESIVE ON ONE SIDE 40X30MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
180
PLATE HIGH PRESSURE CLEANER
185
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
190
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
