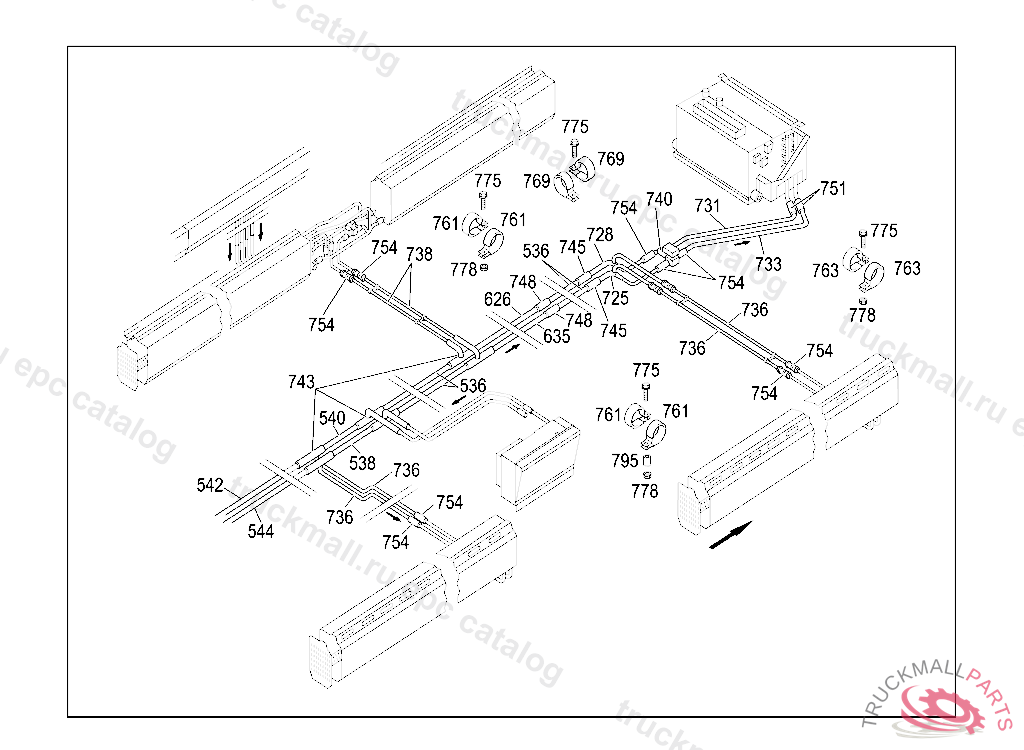

Поз.
Артикул
Описание
536
HEATING PIPE800MM
538
HEATING PIPED38/430MM
540
PIPE LINE
542
HEATING PIPE1180LG
544
HEATING PIPED38/1120MM
626
PIPE LINE
635
PIPE LINE RETURN D38X2300MM
725
PIPE LINE
728
PIPE LINE RETURN
731
PIPE LINE ADVANCE
733
PIPE LINE RETURN
736
PIPE LINE
738
HEATING PIPE1000MM
740
VALVE THREE-WAY VALVE
743
DISTRIBUTORD38/15/38-248MM
745
HOSE ,D 209702
748
HOSE38X50X130MM
751
HOSE22X31X100MM
751
HOSE22X31X80MM
754
HOSE15X24X100
761
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
761
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
761
CLAMP LINE MOUNTING
763
CLAMP22/15, Replaced By: A0019951442
763
CLAMP DELIVERY AND SUCTION LINES TO FRAME
763
MOUNTING CLAMP22/15
769
CLAMP LINE MOUNTING
769
CLAMP , Replaced By: A3829950701
775
SCREW GGVS-COMPONENT IN BATTERY CARRIER M6 X 55
775
SCREW BRACKET AND CLAMP M6X20
775
SCREW , Replaced By: N910143008002
778
NUT , Replaced By: N913023006001
778
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
795
SPACER BUSH
999
SERVO-D.C. W.GEARBOX
