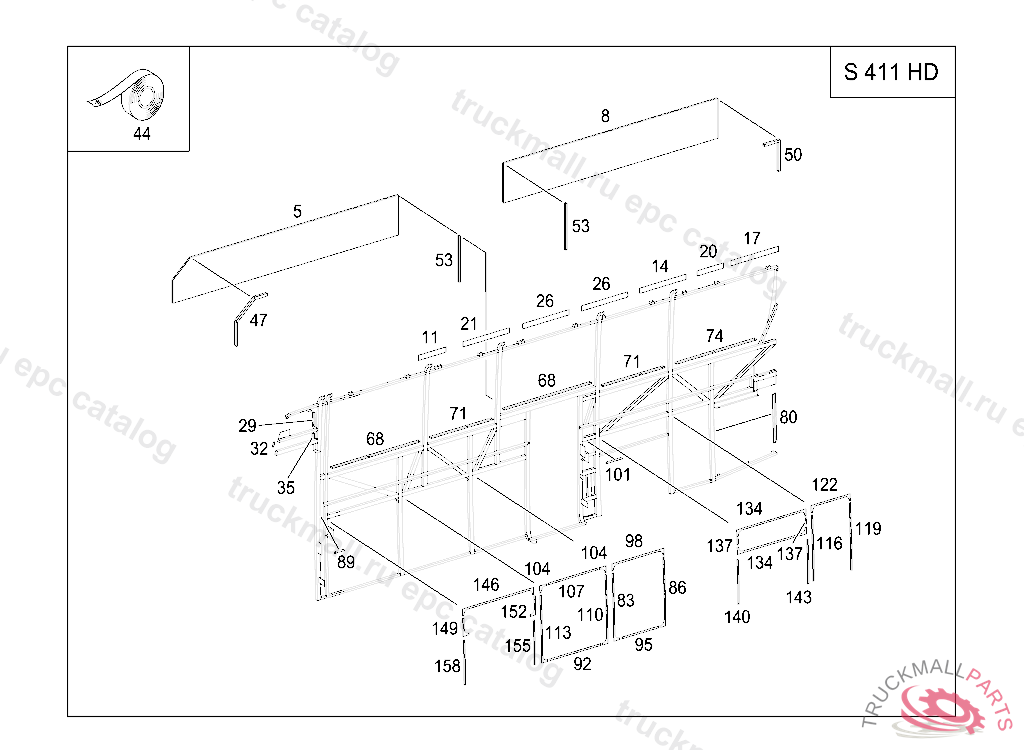

S 411 HD MODELLPFLEGE - 629.610 - 63 SIDE PANELS
Поз.
Артикул
Описание
5
PANELLING
8
PANELLING
11
PANELLING85MM
11
PANELLING AIR INTAKE 199MM
14
PANELLING
14
PANELLING
17
PANELLING AIR INTAKE 199MM
20
PANELLING1329MM
21
PANELLING
26
PANELLING
29
ANGLE
32
ANGLE
35
ANGLE275LG
44
ADHESIVE TAPE ON BOTH SIDES 30MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
44
ADHESIVE TAPE
47
PAD
50
INTERMEDIATE LAYER STRAIGHT VERSION
50
PAD , Replaced By: A6326371995
53
PAD
68
ANGLE SIDE WINDOW PANES 1735MM
71
ANGLE1270MM
74
ANGLE
80
ANGLE1000LG
83
ANGLE1090MM
86
ANGLE LATERAL 1090MM
89
ANGLE
92
ANGLE1229MM
95
ANGLE BOTTOM 984 MM
98
ANGLE TOP 984 MM
101
ANGLE TOP 220LG
104
REINFORCEMENT
107
ANGLE
110
ANGLE LEFT
113
ANGLE RIGHT
116
ANGLE
119
ANGLE1090MM
122
ANGLE
134
ANGLE TOP
137
ANGLE
140
ANGLE
143
ANGLE LATERAL
146
ANGLE TOP
149
ANGLE LATERAL
152
ANGLE LATERAL
155
ANGLE LATERAL
158
ANGLE
