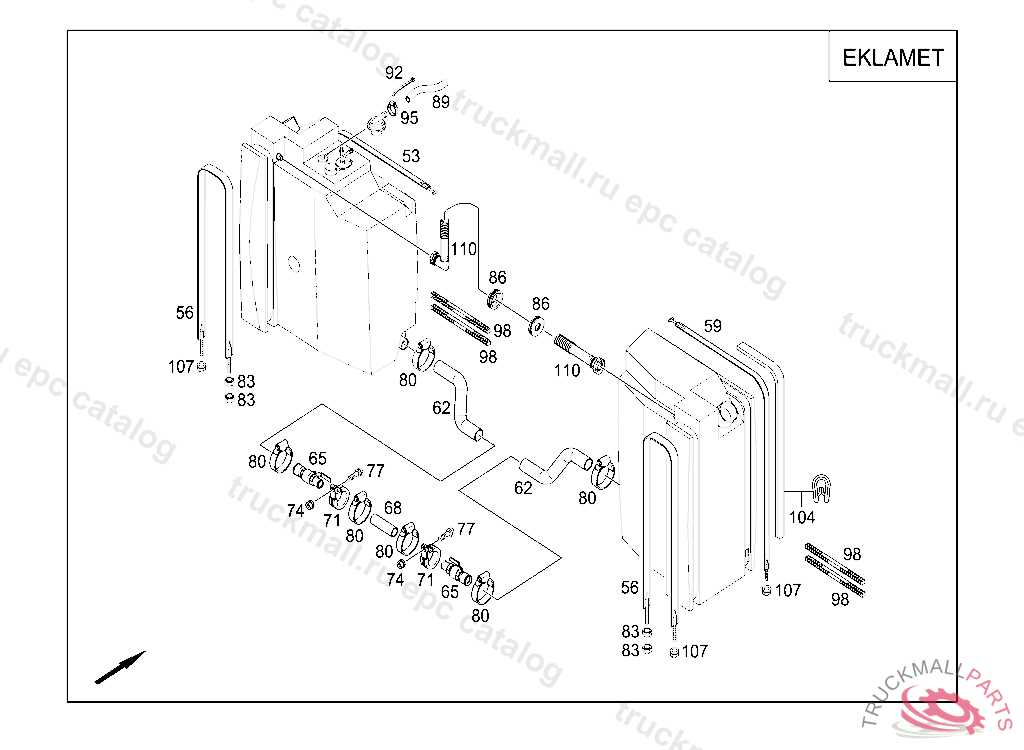

Поз.
Артикул
Описание
53
STRAP LEFT FRONT 1625 LG
56
STRAP REAR 2120 LG
59
STRAP1315 LG
62
HOSE
65
COCK FROM SHUT-OFF COCK TO FUEL HOSE D38/50
68
HOSE (SHUT OFF COCK) 160MM, Replaced By: A0014760426
68
HOSE (SHUT OFF COCK), ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
71
CLAMP50/25, Replaced By: N000000007521
71
CLAMP50/25MM
71
CLAMP50/25
74
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
77
SCREW , Replaced By: N910143008002
80
CLAMP
83
NUT
86
GROMMET
89
LINE7,5X3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
92
LOOM TIE
95
HOSE CLAMP. HOSE CLAMP
98
INSULATING TAPE
104
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
107
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
110
LINE FUEL COMPENSATING LINE
