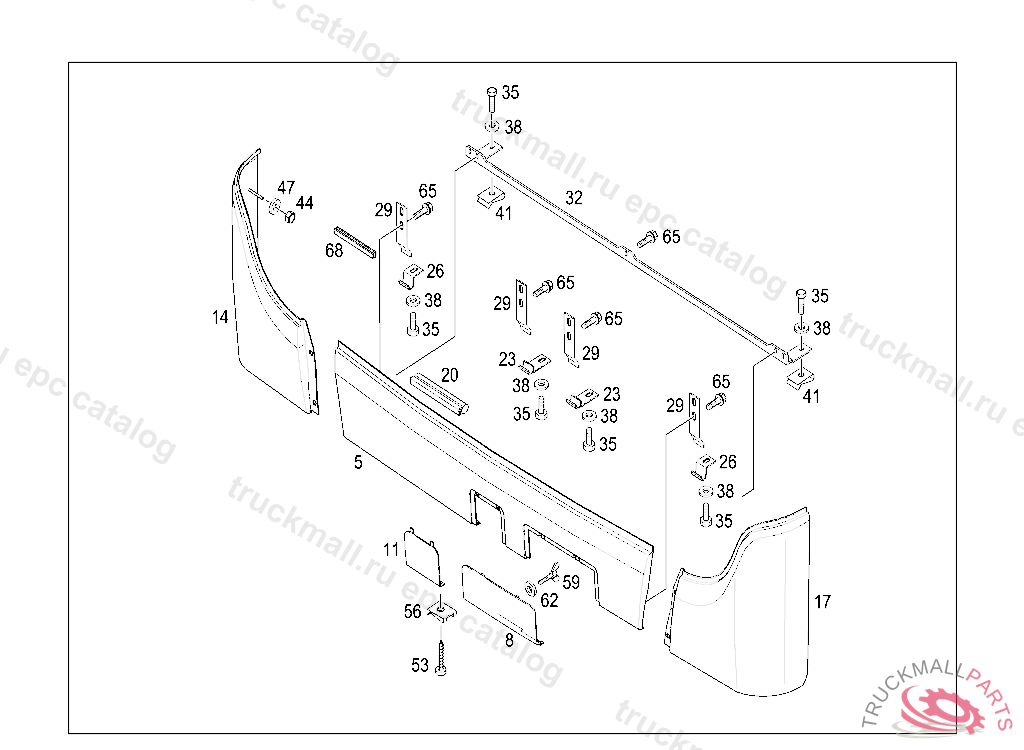

S 415 HD MODELLPFLEGE - 629.612 - 88 ATTACHMENT PARTS
Поз.
Артикул
Описание
5
REAR BUMPER FACE BAR
8
BUMPER JOINT COVER TOWING MOUTH
11
BUMPER JOINT COVER TRAILER COUPLING
14
BUMPERETTE
17
BUMPERETTE REAR RIGHT
20
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
23
CONSOLE
26
CONSOLE
29
RAIL
32
RAIL
35
SCREW BRACKET TO CAB REAR PANEL M 8X20
38
SCREW BRACKET TO SIDE MEMBER M8X20
41
NUT
44
NUT HORN TO BRACKET M8
47
WASHER BRACKET TO FUEL TANK SUPPORT
53
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
56
LOCK
59
SCREWM6X16
62
WASHER LINE MOUNTING
65
HEXAGON HEAD BOLT
68
EDGE GUARD SECTION , ORDER BY THE METER
