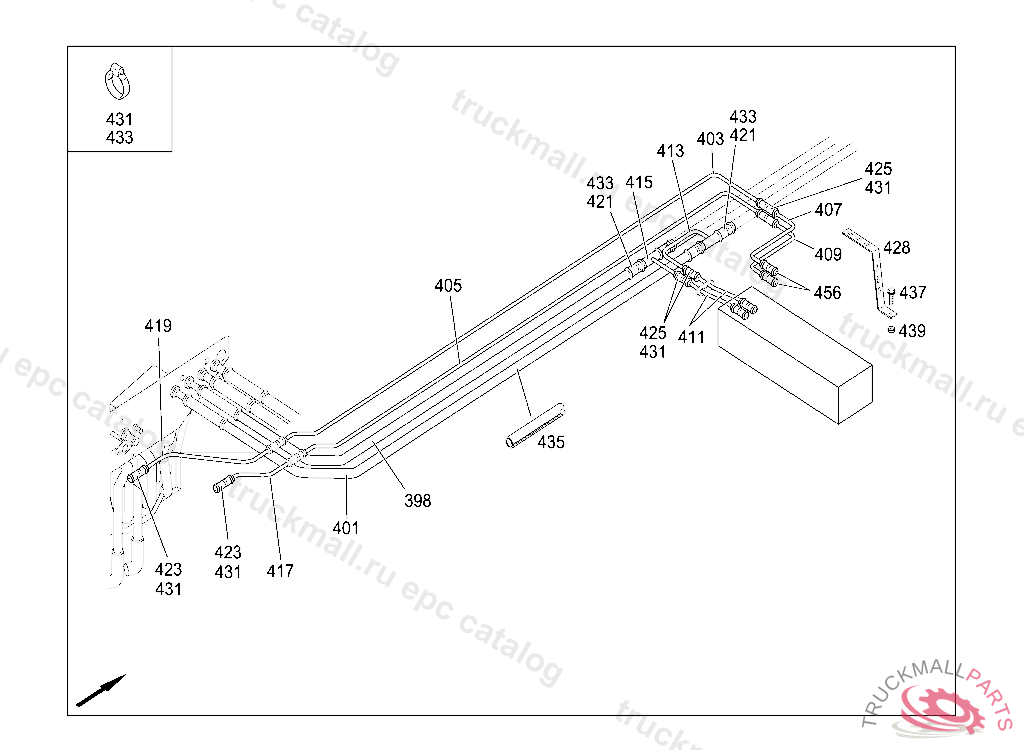

S 415 HD MODELLPFLEGE - 629.612 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
398
PIPE LINE
401
PIPE LINE
403
PIPE LINE
405
PIPE LINE
407
PIPE LINE
409
PIPE LINE
411
PIPE LINE
413
PIPE LINE
415
PIPE LINE
417
PIPE LINE
419
PIPE LINE
421
HOSE28X37X250MM
421
HOSE28X37X100 MM, Replaced By: N000000004989
423
HOSE18X27X100MM
425
HOSE15X24X100
428
BRACKET
431
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
431
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
433
CLAMP HOSE TO INTAKE MANIFOLD 25-40X13MM,V 207570
435
INSULATING HOSE28X42MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
437
SCREW BRACKET AND CLAMP M6X20
439
NUT , Replaced By: N913023006001
456
GROMMET
999
SERVO-D.C. W.GEARBOX
