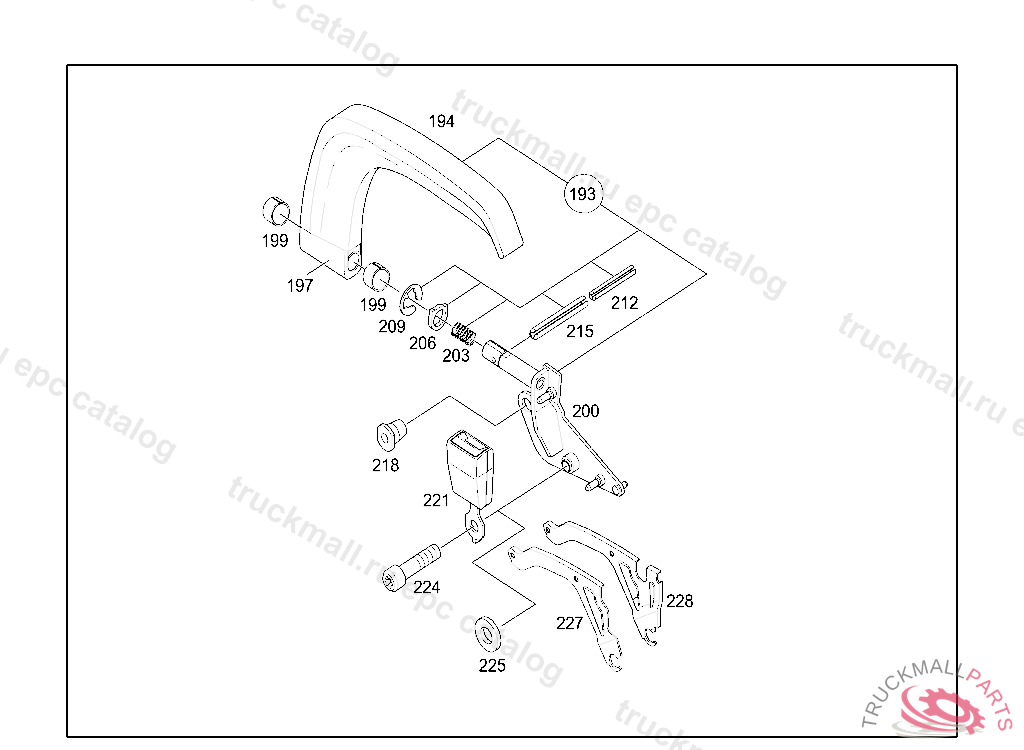

S 415 HD MODELLPFLEGE - 629.612 - 97 SEAT ACCESSORIES
Поз.
Артикул
Описание
193
ARMREST LESS COVER ON SIDE OF AISLE,RIGHT
193
ARMREST LESS COVER ON SIDE OF AISLE,LEFT
194
ARMREST LESS COVER LEFT
194
ARMREST LESS COVER RIGHT
197
CAP RIGHT
197
CAP LEFT
199
BUSHING
200
SUPPORT RIGHT
200
SUPPORT LEFT
203
SPRING
206
BUSHING
209
LOCK PLATE
212
CLAMPING SLEEVE , 912 ONLY FOR CHASSIS 123.105,132,190 952 ONLY FOR CHASSIS 123.193
215
CLAMPING SLEEVE TUBE AND SHAFT TO JOINT SLEEVE 6X22
218
PIN
221
FASTENER
224
SCREWM10X32MM
227
REINFORCEMENT ON CORRIDOR SIDE ON LEFT,WITH SEAT BELT BUCKLE
228
REINFORCEMENT .
