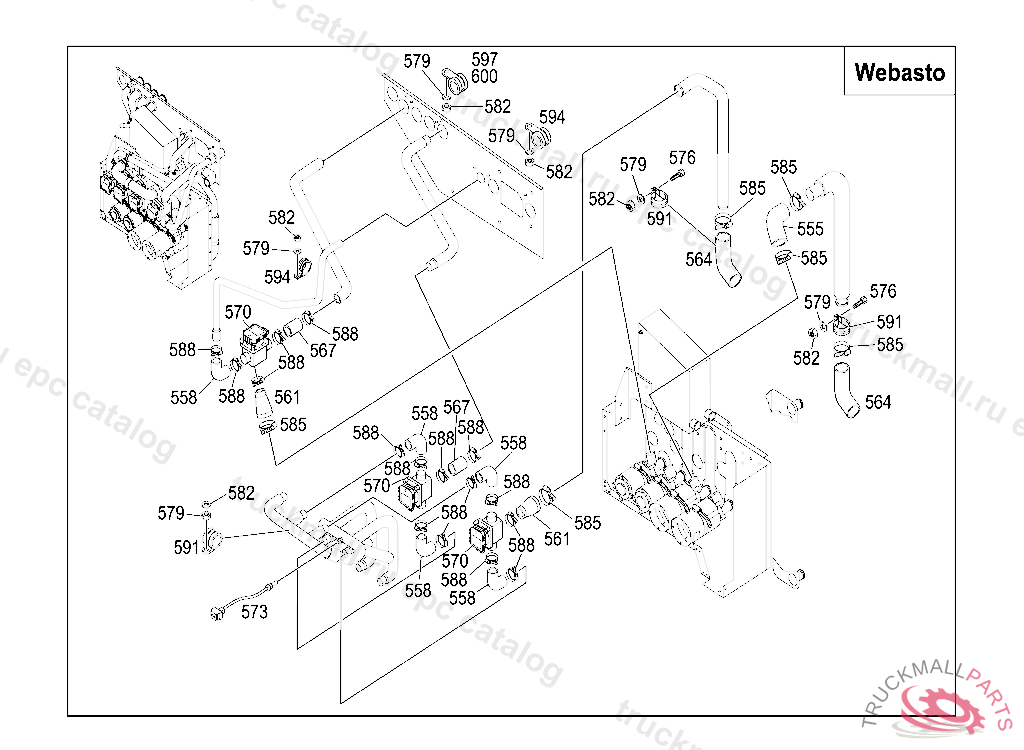

S 415 HD MODELLPFLEGE - 629.612 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
555
HOSE 90-DEGREE ARC D38MM
558
HOSE 90-DEGREE ARC D28MM
561
HOSE REDUCED D38/28MM
564
HOSE REDUCED D38MM,65/130MM
567
HOSED28X62MM
570
VALVE 3/2-WAY VALVE
573
TEMPERATURE SENSOR , Replaced By: A0008210281
573
TEMPERATURE SENSOR
576
SCREW PIN TO FRAME
579
WASHER
582
NUT RELAY TO BRACKET M5
585
CLAMP
588
CLAMP HOSE FASTENING
591
CLAMP OIL LINE TO BRACKET
594
CLAMP BRAKE HOSE BRACKET
597
CLAMP , Replaced By: A3829950701
597
CLAMP LINE MOUNTING
600
CLAMP STAY TO BRACKET
999
COIL SOLENOID VALVE
999
ADHESIVE LABEL DO NOT ENTER
999
INSULATING TAPE REFRIGERANT 2X60MM
999
FITTING
999
LOOM TIE
999
AIR CONDITIONERWEBASTO
