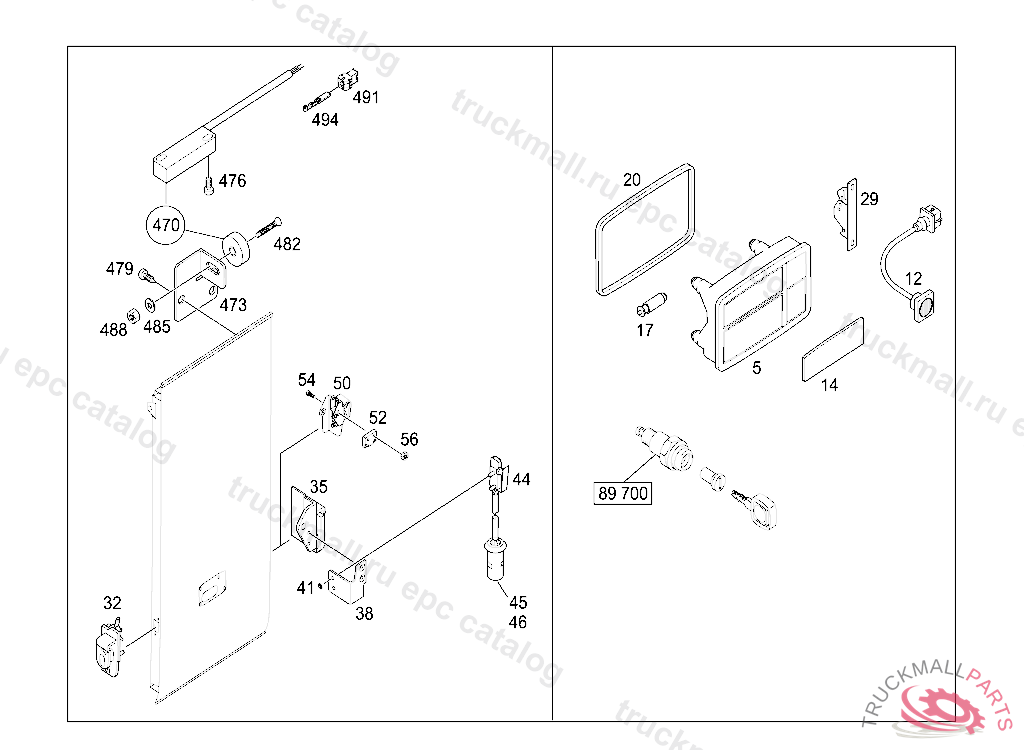

S 415 HD MODELLPFLEGE - 629.612 - 75 OUTSIDE FLAPS

Поз.
Артикул
Описание
5
A6297502893
HANDLE MECHANICAL LOCKING, W/O CARRIER,WITH SIDE LAMP LED, FOR LUGGAGE FLAP
5
A6297502793
HANDLE CENTRAL LOCKING, W/O CARRIER WITH SIDE LAMP LED
12
A6295400645
LAMP
14
A6298260040
REFLECTOR
17
A6298050001
CYLINDER
20
A6297540078
SEAL
29
A0007501250
LOCK
32
A0007500550
LOCK
35
A0007501950
LOCK
38
A6297545614
BRACKET
41
N912010003000
LOCK PLATE , A 372464 ALSO INSTALLED ON A 372469,A 372476,A 372477,A 372483,A 372490,A 372493,A 372505,A 372517,A 372519,A 372525,A 372539,A 372548,A 372572,A 372614, A 373051.EXCEPT FOR A 371956 F 348473
44
A0098201810
SWITCH
45
A0155455428
SOCKET HOUSING. PLUG
46
A0145457726
ROUND PIN BUSHING
50
A0007502450
LOCK
52
A0009820422
MICRO-SWITCH
54
N000000006419
SCREW. HEXAGON HEAD BOLTM2X12
56
N000000006387
HEXAGON NUTM2
470
A0088204610
SOLENOID SWITCH
473
A6297541914
BRACKET SOLENOID SWITCH
476
N000000000448
TAPPING SCREW SWITCH TO BRACKET MBN 10169-ST3.5X16-C
479
N000000000482
TAPPING SCREW. SCREW DOOR CONTACT TO BODY 3,9X9,5
482
A0019909320
SCREW, SPECIAL SHAPE. SCREWM4 X 16
485
N000000003718
WASHER ATTACHMENT OF ELECTRIC LEAD AND GROUND STRAP ON ALTERNATOR
488
N910105004000
SCREWM 4
491
A6555452728
PLUG HOUSING BIPOLAR
494
A0195450028
PLUG , FROM MODEL YEAR '83
