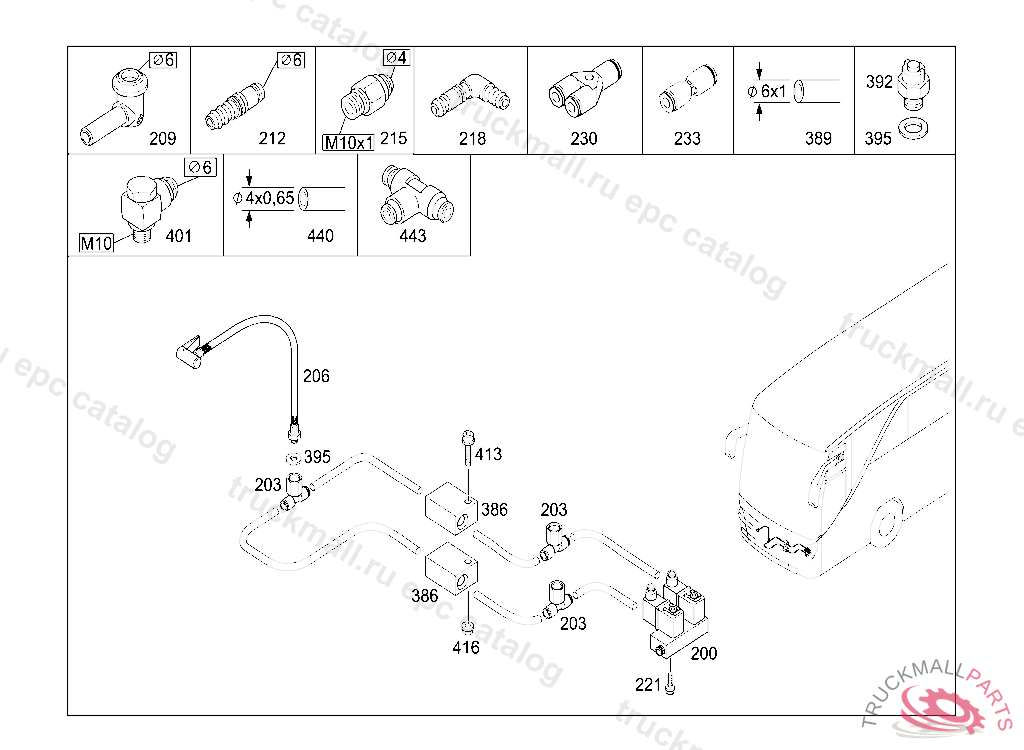

S 415 HD MODELLPFLEGE - 629.612 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
200
VALVE
203
COUPLING
206
LINE
209
ELBOW FITTING
212
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, Replaced By: A0059977889
215
FITTINGM 10 X 1
218
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINES TO M 16 / 4 MM ,VOSS 232,KAN 33/00 AS OF PRODUCTION BREAKPOINT DATE 01.01.2004
221
HEXAGON HEAD BOLT
230
PIPE BRANCHING Y-PIECE
233
QUICK CONNECTOR
386
VALVE SHUTTLE VALVE
389
PLASTIC PIPE RISING PIPE 4X6 MM
392
SWITCH3 BAR
395
SEAL RING
401
FITTING
413
SCREWM 4 X 50
416
NUT-AND-WASHER ASSEMBLY ANTENNA AT BRACKET M4
440
PLASTIC PIPE4X0,65MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
443
T-FITTING
