Поз.
Артикул
Описание

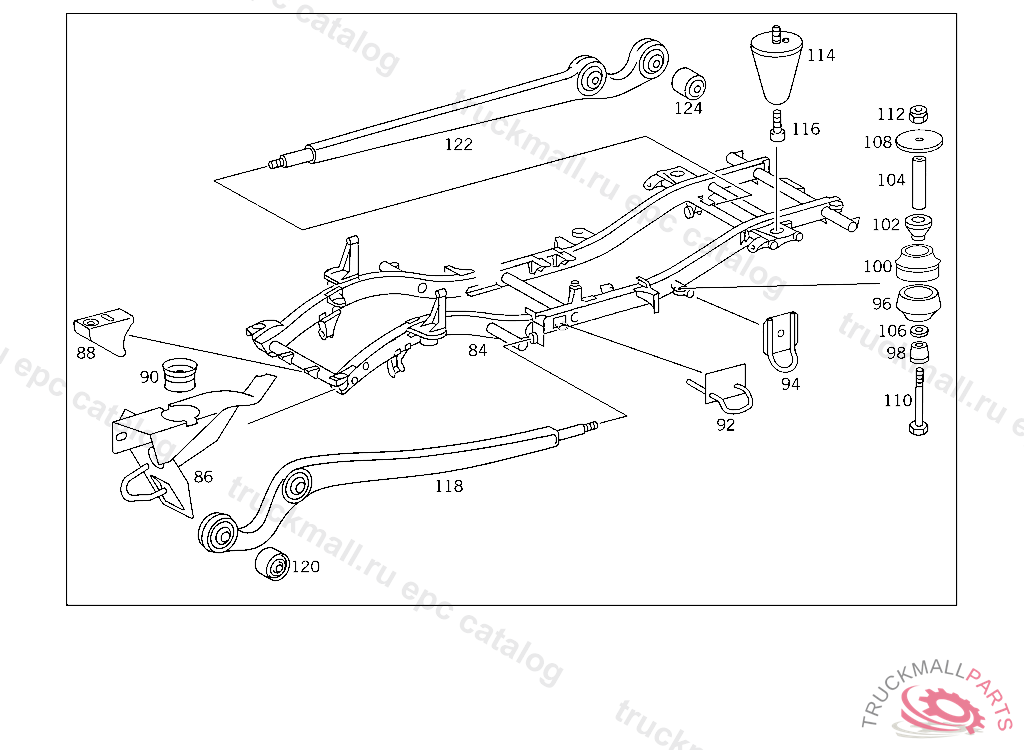

84
FRAME WHEELBASE: 2850 MM
86
CONSOLE RIGHT
86
CONSOLE FRONT LEFT
88
BRACKET RADIATOR MOUNTING
90
SLEEVE
92
ANCHORING LUG CENTRAL
94
ANCHORING LUG
96
RUBBER BUFFER BOTTOM, NOT USED
98
GUIDE BOTTOM, 027801 900569
100
RUBBER BUFFER
102
GUIDE
104
SPACER TUBE BRACKET TO TRANSFER CASE
106
SPACER WASHER SHACKLE TO BEARING BRACKET
106
WASHER BUFFER TO BRACKET
108
WASHER BODY MOUNTING,027801
110
SCREW FOR SPRING CLAMPS,5 484789
112
NUT SUPPORT TO SIDE MEMBER
114
HELPER SPRING REAR
116
CAP BOLT. SCREW CYLINDER TO TRANSMISSION CASE M 12X40
118
THRUST ARM
120
BEARING
122
CONTROL ARM
124
RUBBER MOUNTING
