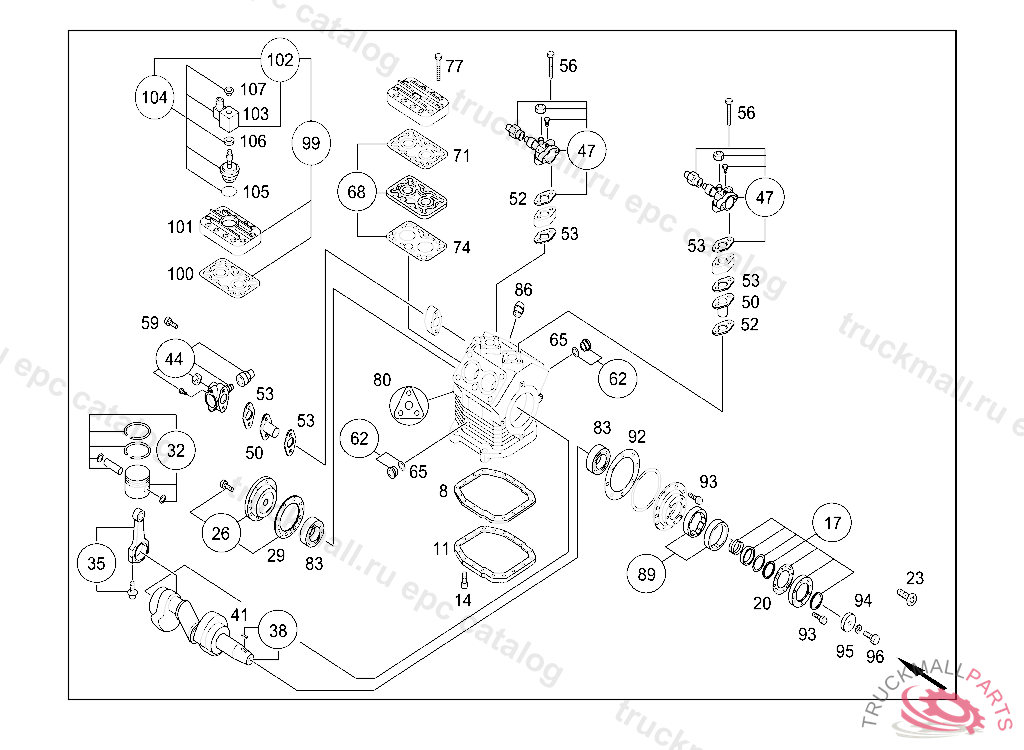

Поз.
Артикул
Описание
8
WEATHERSTRIP
11
PLATE
14
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
17
BEARING CAP REPAIR KIT
20
GASKET
23
SCREW AUXILIARY FRAME MOUNTING
26
OIL PUMP (PARTS KIT),OIL PUMP
29
GASKET
32
PISTON COMPLETE, Replaced By: A0001304417
35
CONNECTING ROD
38
CRANKSHAFT REPAIR KIT
41
SPRING
50
STRAINER ON SUCTION SIDE
53
GASKET"KONVEKTA", Replaced By: A0008312998
53
GASKET"KONVEKTA", UP TO IDENT NO. IN CASE OF KONVEKTA 096427, IN CASE OF WEBASTO 096251 EXCEPT FOR 096457,096458
56
HEXAGON HEAD BOLT MOUNTING,GAS CYLINDERS M10X110
59
SCREW TRANSMISSION CASE TO TRANSMISSION CASE M 10X65
62
SIGHT GLASS
65
SEAL RING
68
VALVE
71
GASKET
74
SEAL , Replaced By: A0008330498
77
HEXAGON HEAD BOLTM10X70
80
GASKET KIT
83
CYLINDR. ROLLER BEARING
86
SCREW PLUG BOTTOM
99
REGULATOR
100
GASKET
101
COVER
102
MAGNET
103
MAGNET COIL
104
VALVE INSERT
105
SEAL RING48X2,5MM
106
WASHER30X16X2,0MM
107
NUTM15X1
