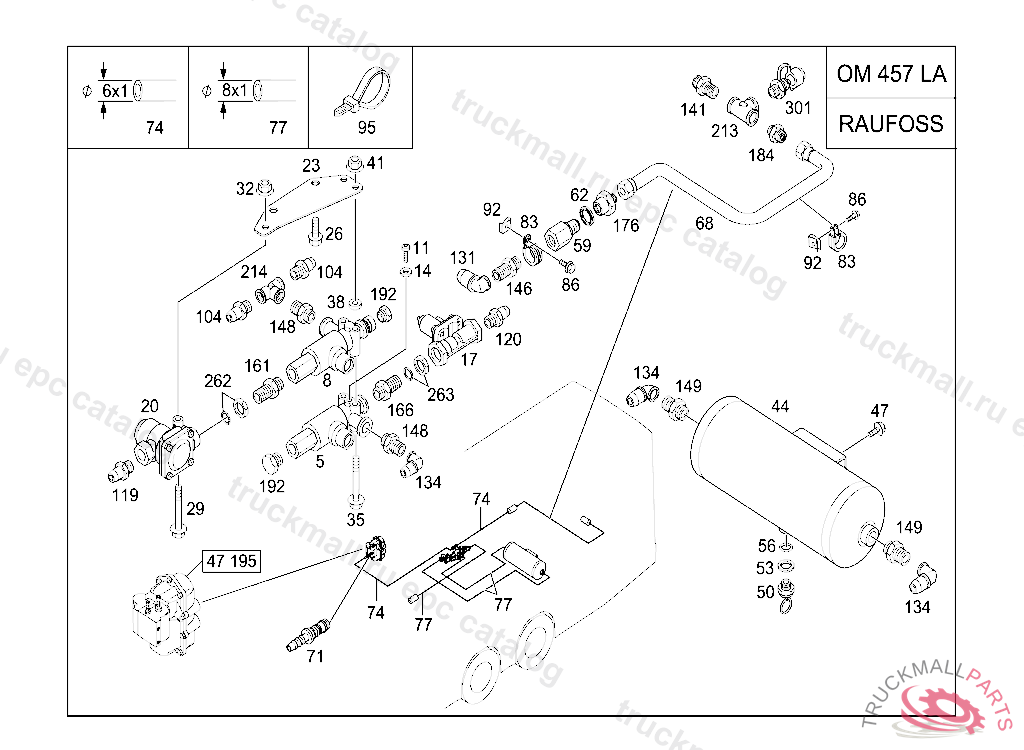

Поз.
Артикул
Описание
5
SOLENOID VALVE 3/2-WAY VALVE ADBLUE
8
VALVE (3/2-WAY SOLENOID VALVE)
11
SCREWM6X12 TX30
14
SEAL RINGBOSCH
17
VALVE (OVERFLOW VALVE) WABCO
20
VALVE PRESSURE LIMIT VALVE
23
BRACKET VALVE UNIT
26
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
26
SCREWM 10X20
29
SCREW , Replaced By: N910143008009
29
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
32
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
35
HEXALOBULAR BOLT. SCREW , Replaced By: N910105008024
35
SCREW. HEXAGON HEAD BOLT FRONT EXHAUST PIPE TO MUFFLER M8X110 - TO A 979 492 03 40
38
SPACER WASHER AT CONSOLE
41
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
44
RESERVOIR
47
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
50
VALVE DRAIN VALVE
53
THRUST RING CHECK VALVE TO AIR RESERVOIR
56
SEAL RING20.3X2.4
59
CHECK VALVE
62
SEAL RING 3/2-WAY VALVE
68
LINE
71
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M10, 4MM, SDF
71
CONNECTION PIECE , Replaced By: A0049971489
74
PLASTIC PIPE RISING PIPE 4X6 MM
77
PLASTIC PIPE AERATION, ORDER BY THE METER
83
CLAMPRSGU S 18/15
83
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
83
CLAMP6/15, Replaced By: N000000007509
83
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
86
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
86
SCREW , Replaced By: N914146006102
86
SCREW BRACKET AND CLAMP M6X20
86
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
92
LOCK NUT. SPRING NUT STEP TO ENTRANCE
95
CABLE STRAP7.8X465
104
FITTING6X1/M16X1.5 RAUFOSS
119
FITTING8X1/M16X1.5 RAUFOSS
120
FITTING8X1/M22X1.5 RAUFOSS
131
ELBOW FITTINGP5/6X1/90GR RAUFOSS
134
ELBOW FITTINGP5/8X1MM/90GR
141
FITTINGP5/M10X1 RAUFOSS
146
FITTINGP5/M12X1.5 RAUFOSS
148
FITTINGP5/M16X1.5
149
FITTINGP5/M22X1.5 RAUFOSS
161
FITTINGM16X1.5/M16X1.5 RAUFOSS
166
FITTINGM16X1.5/M22X1.5/M16X1.5
176
FITTINGM12X1.5/M12X1.5
184
FITTINGM16X1.5/M12X1.5 RAUFOSS
192
PLUG WITH O-RING M16X1.5
213
T-FITTINGM16X1.5/M16X1.5/P5 RAUFOSS
214
T-FITTINGM16X1.5/P5/M16X1.5 RAUFOSS
262
NUT WITH O-RING M16X1.5 RAUFOSS
263
NUT WITH O-RING M22X1.5 RAUFOSS
301
VALVE TEST VALVE M16X1.5/M16X1.5 RAUFOSS
