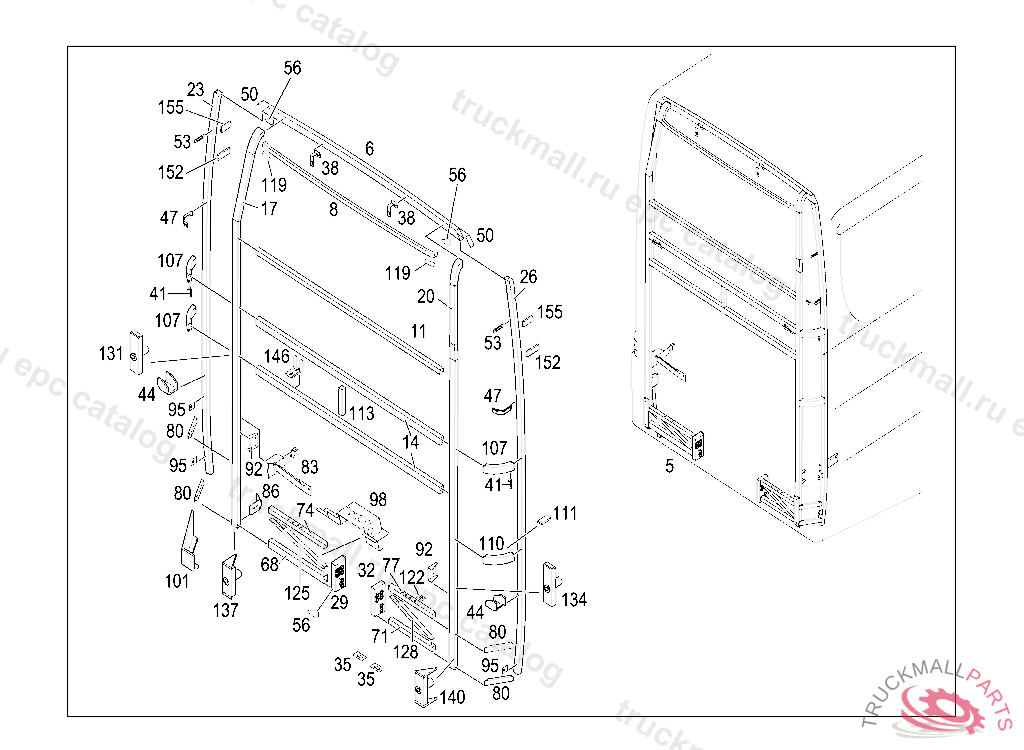

S 416 HDH MODELLPFLEGE - 629.625 - 64 REAR PANEL
Поз.
Артикул
Описание
5
REAR PANEL COMPLETE
6
FRAME PART
8
SUPPORT REAR WINDOW PANE
11
FRAME PART REAR WINDOW FRAME ON PLATE, BOTTOM L2060 MM
14
SUPPORT CENTRE
17
PILLAR LEFT
20
PILLAR RIGHT
23
PILLAR LEFT
26
PILLAR RIGHT
29
STAY LEFT
32
STAY RIGHT
35
PERFORATED PLATE REAR BOTTOM
38
BRACKET
41
WELDING PIECE
44
BRACKET
47
BRACKET
50
PLATE
53
BRACKET
56
REINFORCEMENT HECKBLENDE
68
PIPE LEFT
71
PIPE RIGHT
74
CROSS MEMBER LEFT
77
CROSS MEMBER RIGHT
80
STRUTL238 MM
83
BRACKET
86
BRACKET LEFT BOTTOM
92
BRACKET HECKLEUCHTE
95
PLATE MOUNTING PLATE 60 X 40 MM
98
CONSOLE
101
ANGLE
107
STRUT270LG
110
STRUT RIGHT
111
PLATE
113
PILLAR CENTRE
119
PLATE
122
BRACKET
125
STRUT LEFT L610 MM
128
STRUT RIGHT L475 MM
131
MOUNTING
134
MOUNTING
137
MOUNTING
140
MOUNTING
146
BRACKET ENGINE COMPARTMENT FLAP
152
GUSSET PLATE
155
PLATE
