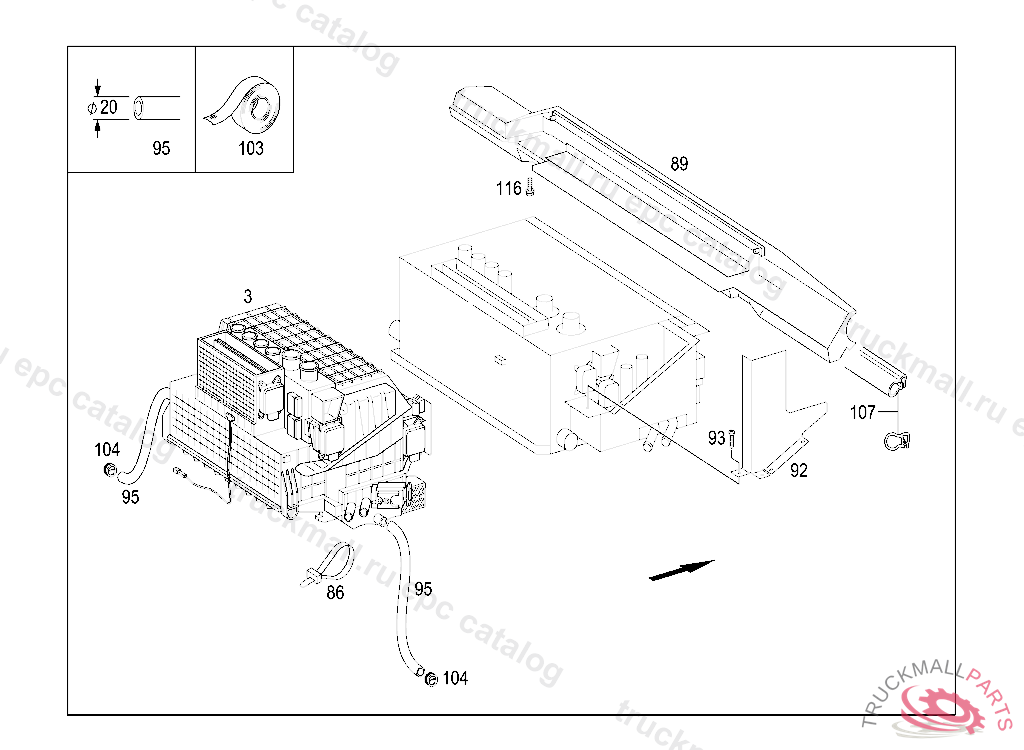

S 416 HDH MODELLPFLEGE - 629.625 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
3
FRONT CABINETBEHR
86
CABLE TIE310X5MM
86
CABLE TIE , Replaced By: A0049971890
89
DUCT
92
COVERING
93
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
95
HOSE TRANSPARENT D20X3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
103
SEALING TAPE20X6MM/1500LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
104
GROMMET
107
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
116
SCREW. HEXAGON HEAD BOLT SENDER UNIT TO BRACKET M5X25,V 214287
