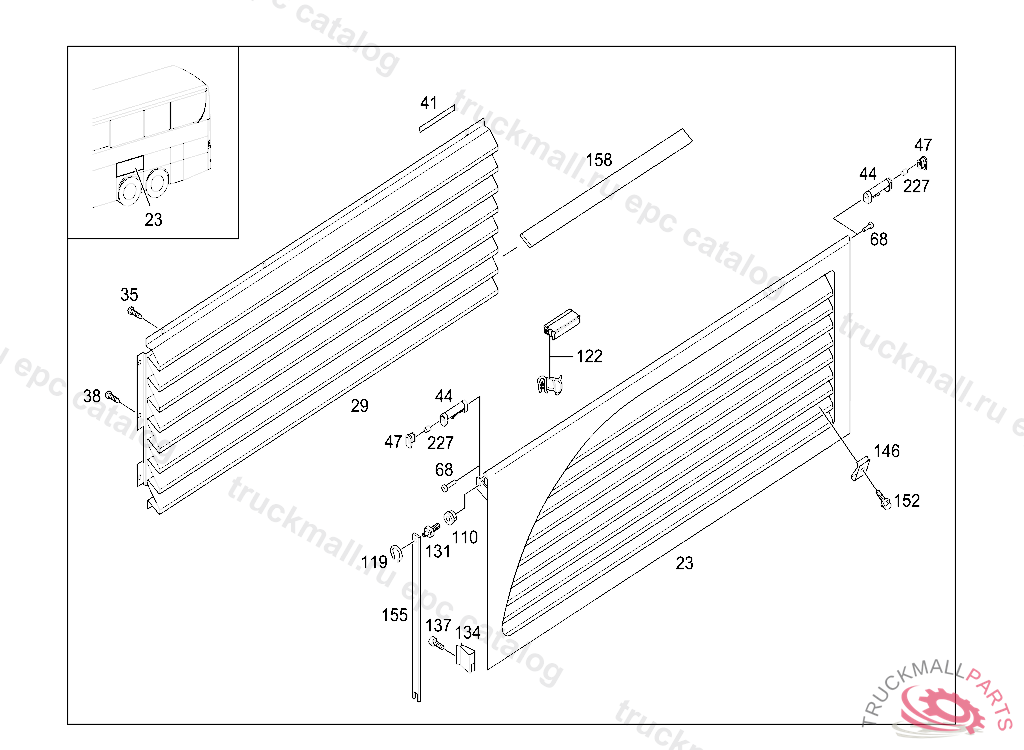

S 416 HDH MODELLPFLEGE - 629.625 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
23
FLAP
23
HINGED DOOR
29
VENTILATION PART
29
GRILLE
35
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
38
HEXALOBULAR BOLTM5X12
41
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
44
BUSHING
47
PROTECTIVE CAP
68
BUSHING
110
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
119
LOCK RING
122
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
131
MOUNTING
134
SPRING
137
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
146
NUTM8
152
HEXALOBULAR BOLTM8X16
155
SUPPORT
158
INSULATION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
227
DIFFERENTIAL PINION SHAFT
