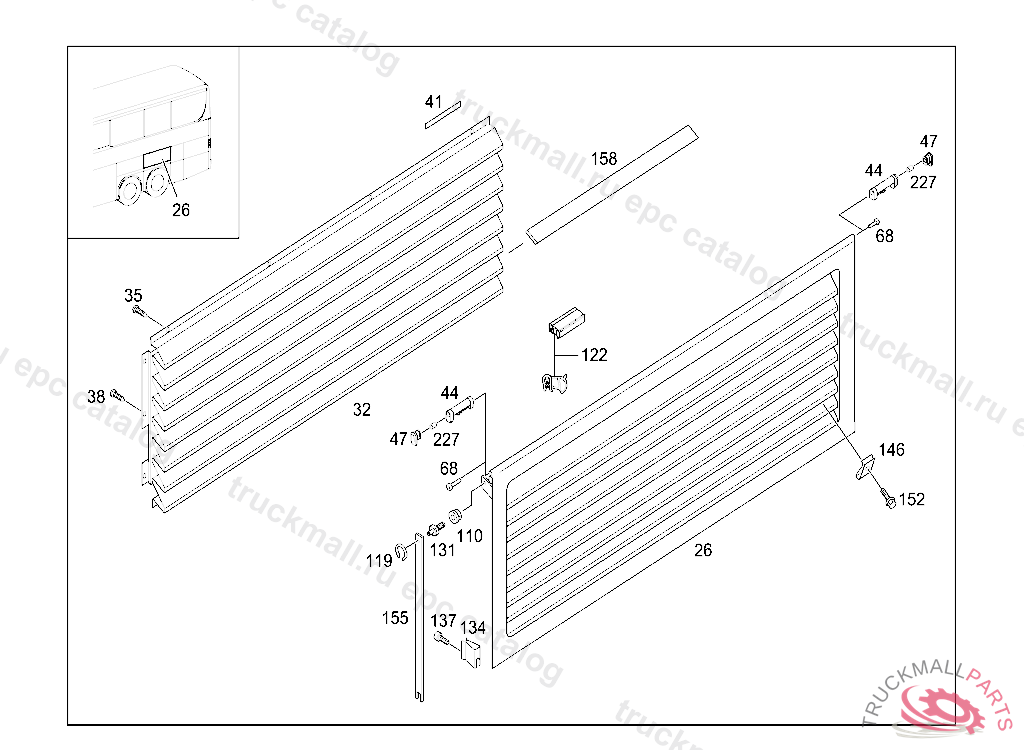

Поз.
Артикул
Описание
26
FLAP , FROM IDENT NO. WKK 629421 13 000154 ALSO INSTALLED ON 100000 - 520000 FROM IDENT NO. WKK 629422 13 000133 ALSO INSTALLED ON 100000 - 520000WKK 629425 13 000001
26
HINGED DOOR
32
GRILLE
32
VENTILATION PART
35
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
38
HEXALOBULAR BOLTM5X12
41
SEALING STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
44
BUSHING
47
PROTECTIVE CAP
68
BUSHING
110
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
119
LOCK RING
122
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
131
MOUNTING
134
SPRING
137
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
146
NUTM8
152
HEXALOBULAR BOLTM8X16
155
SUPPORT
158
INSULATION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
227
DIFFERENTIAL PINION SHAFT
