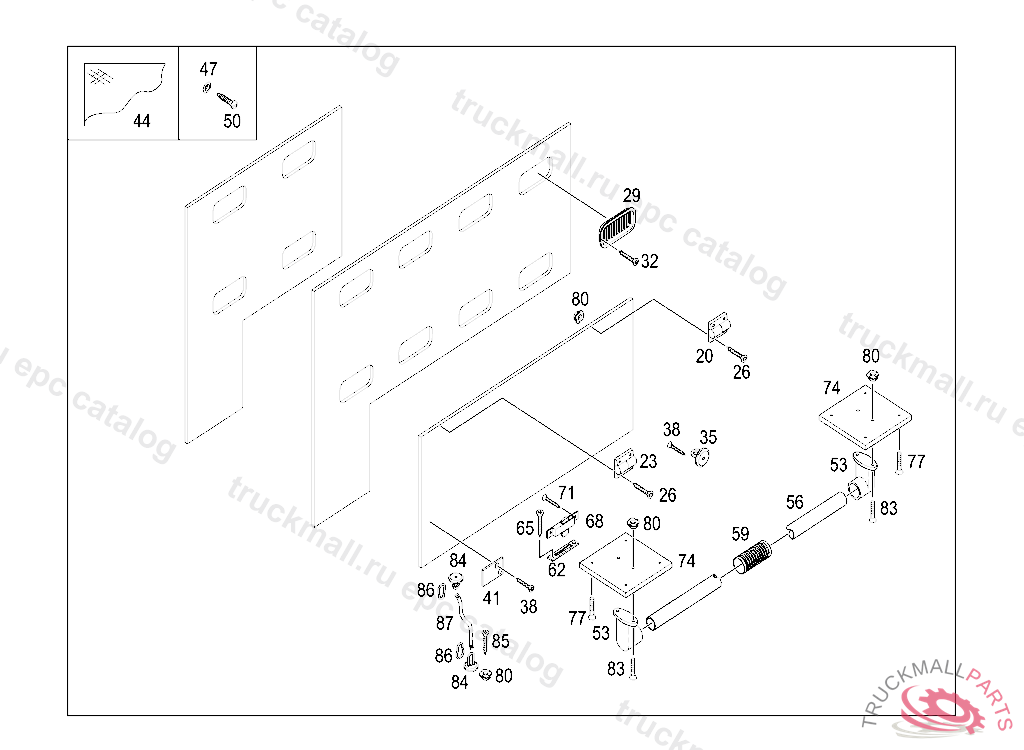

Поз.
Артикул
Описание
20
HINGE
23
HINGE
26
HEX. SKT. CAP BOLTM5X16MM
29
COVERING
32
TAPPING SCREW2,9X13
38
SCREWM5 X 16 MM
41
PLATE
44
CARPET , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
47
WASHER W CHAMFER FABRIC GUARD PLATE
50
TAPPING SCREW DRIVER'S PARTITION PANEL 3,5X25MM
53
STAY
56
TUBE , TO BE ADAPTED DURING ASSEMBLY
56
TUBE
59
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
62
STRIKER PLATE
65
TAPPING SCREW ROOF MOUNTED OPERATING UNIT
68
LOCK
71
TAPPING SCREW4.5X13
74
REINFORCEMENT
77
TAPPING SCREW. SCREW
80
NUT
80
THREADED CHUCKCODE 844
83
SCREWM6X16
84
EYELG-800 MM
85
TAPPING SCREW. SCREW HANDLE TO BACKREST
85
SCREWM4X16, Replaced By: N000000000482
86
SNAP HOOK
87
RETAINING STRAP
