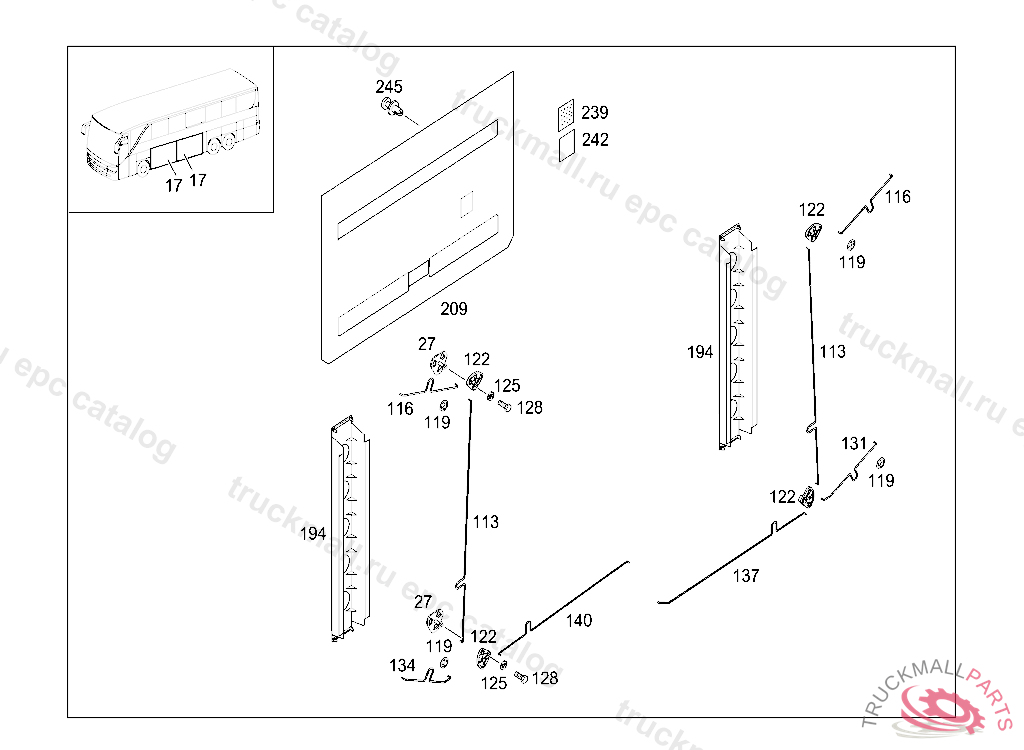

S 416 HDH MODELLPFLEGE - 629.625 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
17
FLAP STROKE FLAP L 2290 MM
17
HINGED DOOR STROKE FLAP L 2290 MM
27
BEARING SLEEVE
113
ROD
116
RODL168 MM
119
LOCK
122
LEVER
125
WASHER
128
SCREW
131
ROD
134
ROD
137
RODL948 MM
137
RODL783 MM
137
RODL693 MM
140
RODL726 MM
140
RODL891 MM
140
RODL636 MM
194
COVERING
209
COVERING
239
SOFT STRAP. BAND ADHESIVE FASTENER, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
242
HOOK STRAP. BAND ADHESIVE FASTENER, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
245
RIVET COVERING TO BRACKET
