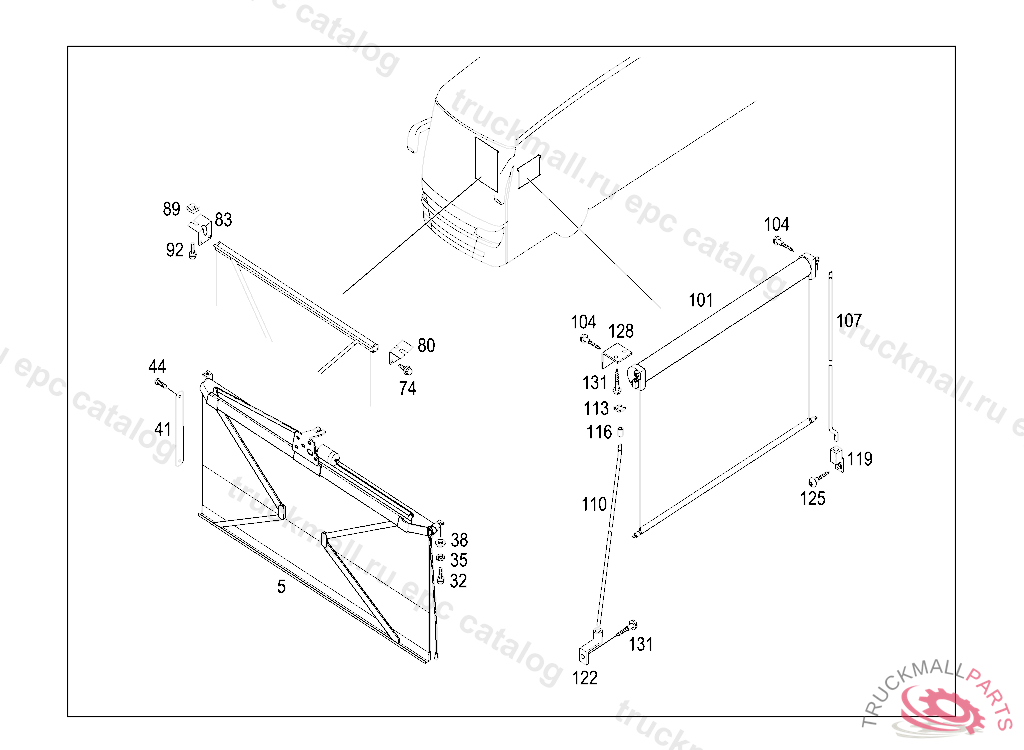

Поз.
Артикул
Описание
5
ROLLER BLIND ELECTRIC SCREW-ON SPACING 1015 MM
32
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
35
LOCK WASHER CABLE TO FUSE BOX
38
WASHER LINE MOUNTING
41
BAND
44
TAPPING SCREW MOUNTING PLATE 3.5X9.5
74
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
80
ANGLE LEFT
80
ANGLE LEFT
80
ANGLE LEFT
83
ANGLE RIGHT
83
ANGLE RIGHT
83
ANGLE RIGHT
89
NUT
89
NUTM8
92
SCREW BRACKET TO CAB REAR PANEL M 8X20
92
SCREW BRACKET MOUNTING M6 X 20
92
SCREW , Replaced By: N910143008002
101
ROLLER BLIND DRIVER'S WINDOW
104
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
107
ROD ROLLER BLIND MOUNTING
110
ROD
113
CLIP
116
STOP
119
BRACKET
122
BRACKET
125
TAPPING SCREW3.5X9.5
128
ANGLE
131
TAPPING SCREW BRACKET MOUNTING
