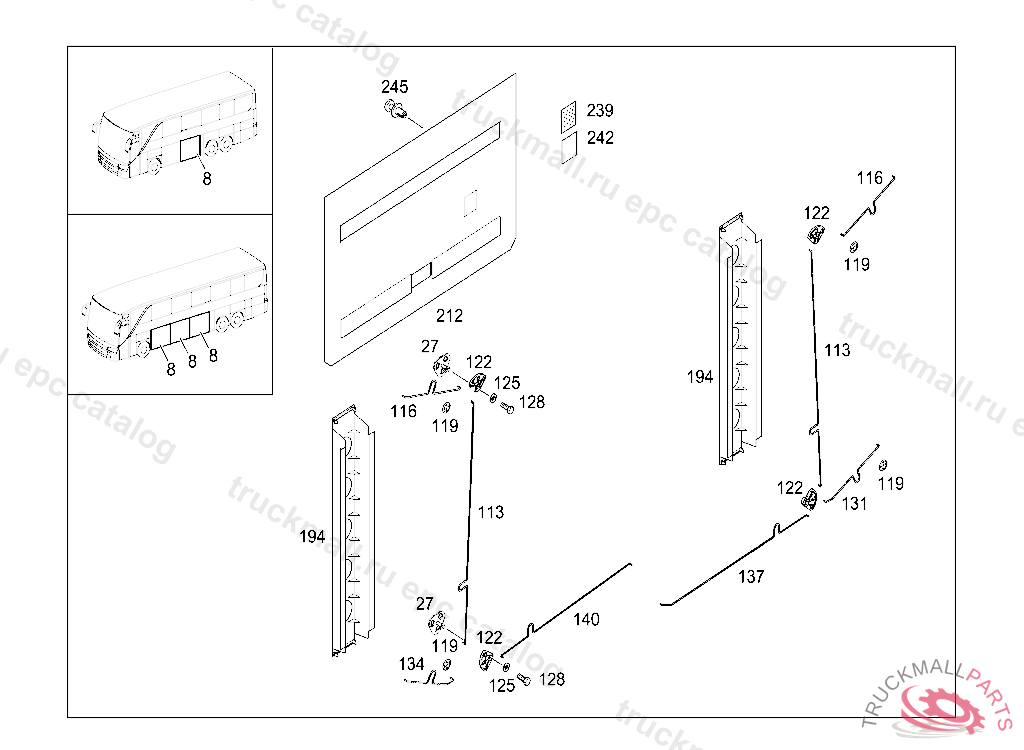

S 417 HDH MODELLPFLEGE - 629.627 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
8
HINGED DOOR STROKE FLAP L1810 MM
8
FLAP STROKE FLAP L1810 MM
27
BEARING SLEEVE
113
ROD
116
RODL168 MM
119
LOCK
122
LEVER
125
WASHER
128
SCREW
131
ROD
134
ROD
137
RODL712 MM
137
RODL509 MM
137
RODL415 MM
140
RODL359 MM
140
RODL455 MM
140
RODL658 MM
194
COVERING
212
COVERING
239
SOFT STRAP. BAND ADHESIVE FASTENER, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
242
HOOK STRAP. BAND ADHESIVE FASTENER, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
245
RIVET COVERING TO BRACKET
