Поз.
Артикул
Описание

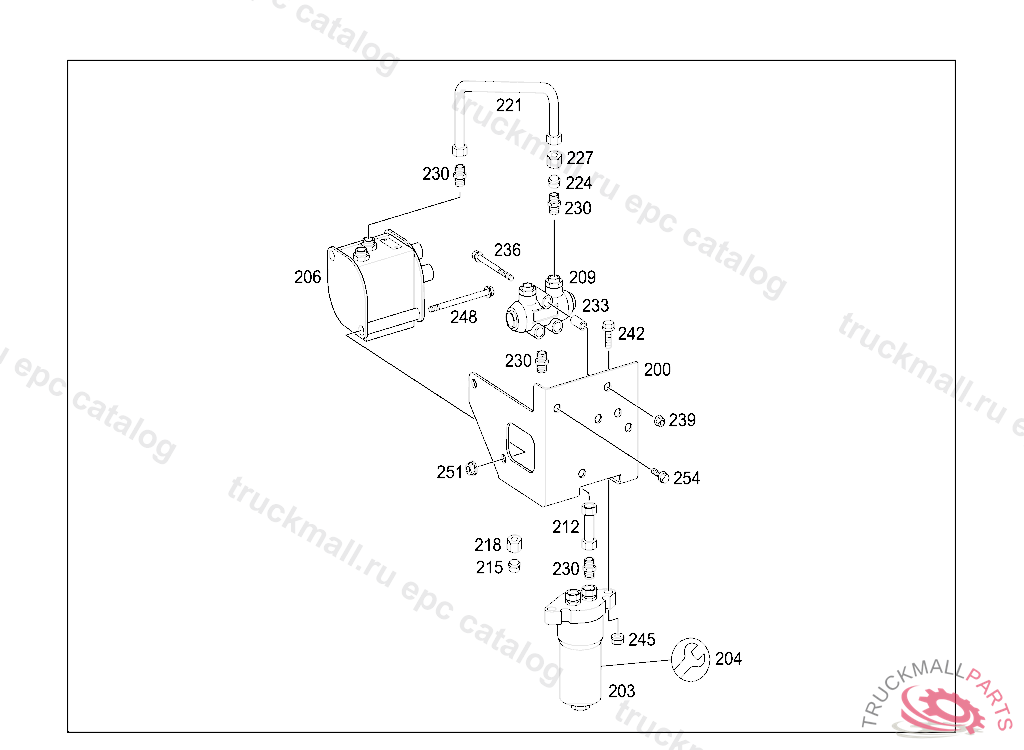

200
BRACKET TRAILING AXLE HYDRAULIC UNIT, UNTIL PRODUCTION BREAKPOINT DATE 28.02.09
200
BRACKET TRAILING AXLE HYDRAULIC UNIT, AS OF PRODUCTION BREAKPOINT DATE 01.03.09
203
OIL FILTER TO OIL DELIVERY LINE
204
OIL FILTER REPAIR KIT
206
VALVE TO OIL DELIVERY LINE
209
VALVE , Replaced By: A0004606484
209
FLOW DIVIDER VALVE TO OIL DELIVERY LINE
209
FLOW DIVIDER VALVE
212
LINE , AS OF PRODUCTION BREAKPOINT DATE 01.03.09
212
LINE , UNTIL PRODUCTION BREAKPOINT DATE 28.02.09
215
GLAND (DELIVERY AND SUCTION LINE) BL15
218
NUT LINE CONNECTIONS AL 15
218
UNION NUT LINE CONNECTION
221
LINE
224
GLAND (DELIVERY AND SUCTION LINE) BL15
227
NUT LINE CONNECTIONS AL 15
227
UNION NUT LINE CONNECTION
230
SCREW-IN FITTING , Replaced By: N003901015005
230
FITTING AT STEERING GEAR
233
SPACER SLEEVE
236
SCREW VALVE TO TRANSMISSION CASE COVER
236
HEXAGON HEAD BOLT. SCREW 3/2-WAY VALVE TO BRACKET M 8X100
239
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
242
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
245
NUT , Replaced By: N913023010002
248
HEXAGON HEAD BOLT TORSION BAR TO SHACKLE M12X1.5X130
251
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
254
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
