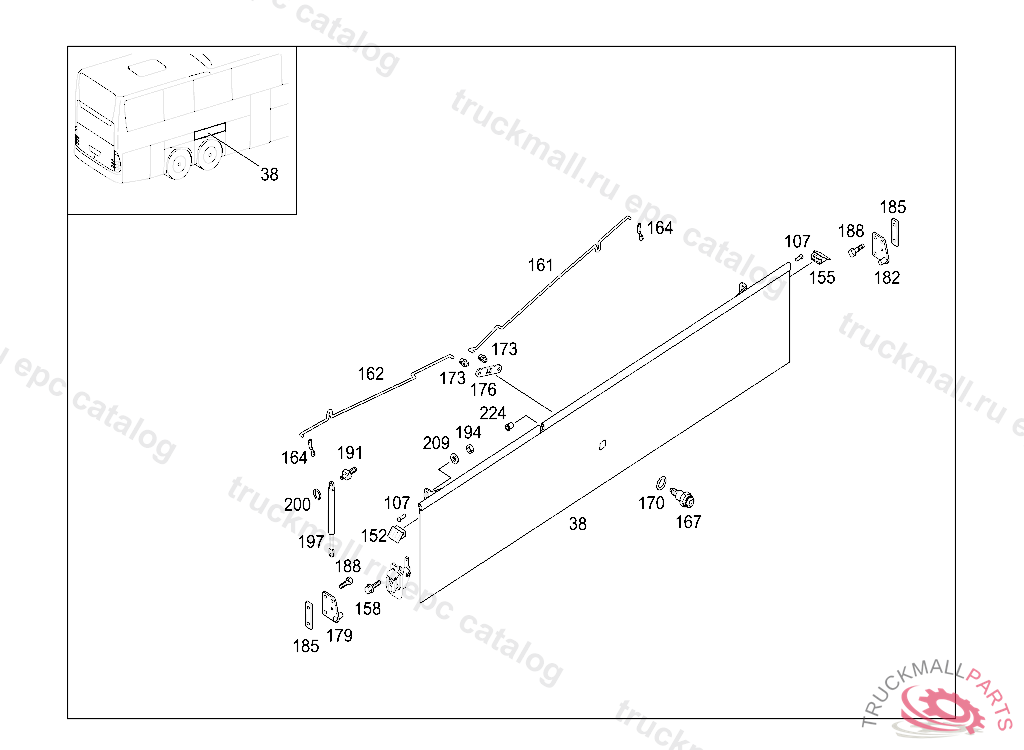

TRAVEGO 16 RHD 3 - ACHSER - 632.005 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
38
FLAP
107
BUSHING
152
LOCKING CAP
155
LOCKING CAP
158
HEXAGON HEAD BOLT
161
RODL567 MM
161
RODL564MM
162
OPERATING ROD567MM
164
LOCK
167
LOCK HOUSING , STATE LOCK NUMBER WHEN ORDERING
170
SEAL RING
173
CLIP
173
CLIP , Replaced By: A0039885078
176
PAWL
179
STRIKER
182
STRIKER
185
PLATE
188
SCREW , Replaced By: N910143008000
191
MOUNTING
194
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
197
SPRING PNEUMATIC SPRING 200 N
200
LOCK RING
209
WASHER
224
BUSHING
