Поз.
Артикул
Описание

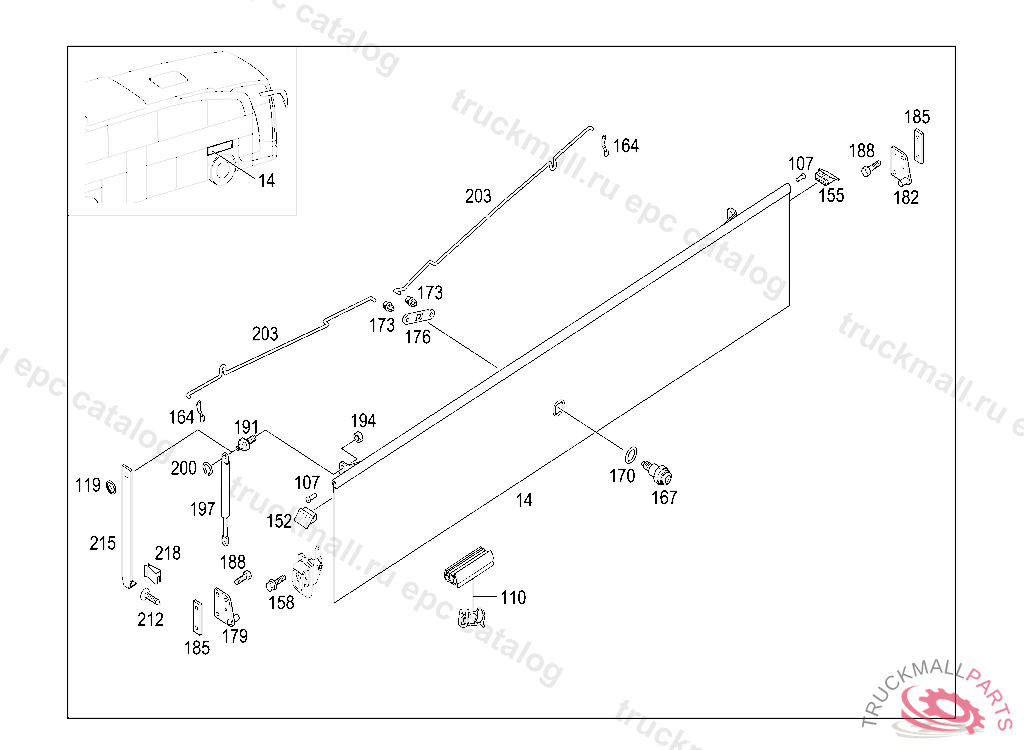

14
FLAPL1140 MM
14
FLAPL1140 MM
107
BUSHING
110
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
119
LOCK
119
SPRING NUT , Replaced By: A0009943510
152
LOCKING CAP
155
LOCKING CAP
158
HEXAGON HEAD BOLT
164
LOCK
167
LOCK HOUSING , STATE LOCK NUMBER WHEN ORDERING
170
SEAL RING
173
CLIP
173
CLIP , Replaced By: A0039885078
176
PAWL
179
STRIKER
182
STRIKER
185
PLATE
188
SCREW , Replaced By: N910143008000
191
MOUNTING
194
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
197
SPRING PNEUMATIC SPRING 200 N
200
LOCK RING
203
LINKAGEL467 MM
212
TAPPING SCREW BRACKET TO SUPPORT
215
STAY
218
SPRING
