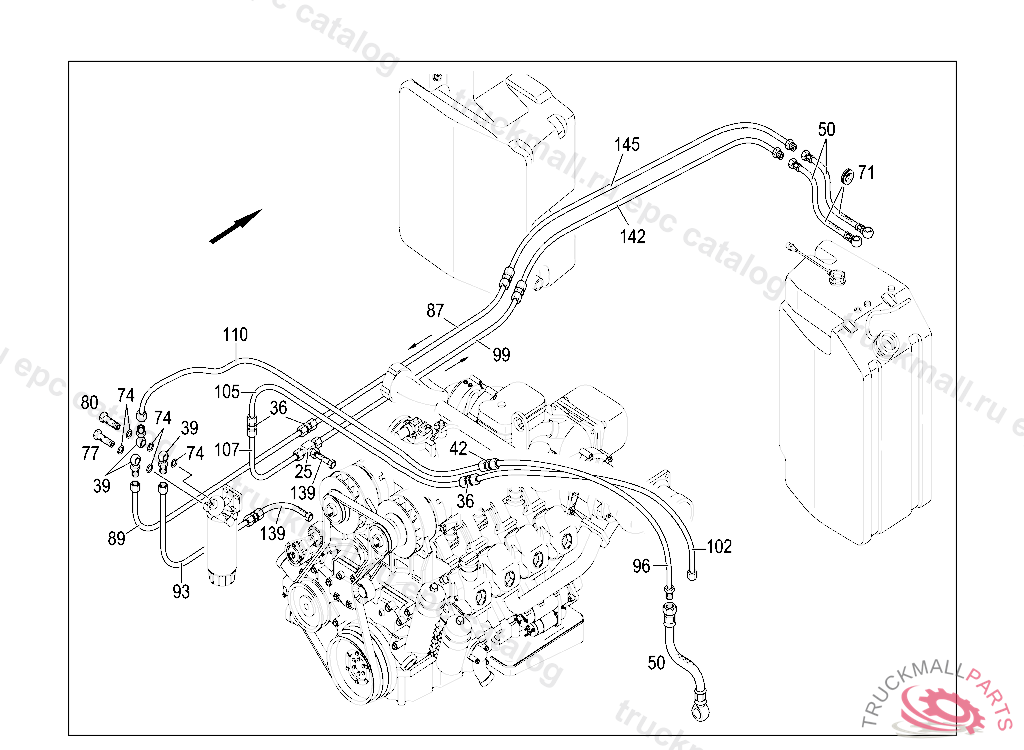

TRAVEGO 17 RHD 3 - ACHSER - 632.007 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
25
T-FITTING
36
FITTING
39
FITTING
42
FITTING
50
FUEL HOSE
71
GROMMET
74
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
77
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
80
HOLLOW SCREW BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
87
LINE FEED 2010X12MM
89
LINE
93
LINE1530MM
96
LINE
99
LINE FEED 2010X12MM
102
LINE1400MM
105
LINE1500MM
107
LINE1750 LG
110
LINE1400MM
139
FUEL HOSE
142
LINE RETURN 760X12MM
145
LINE FEED 700X12MM
999
NUT HORN TO BRACKET M8
