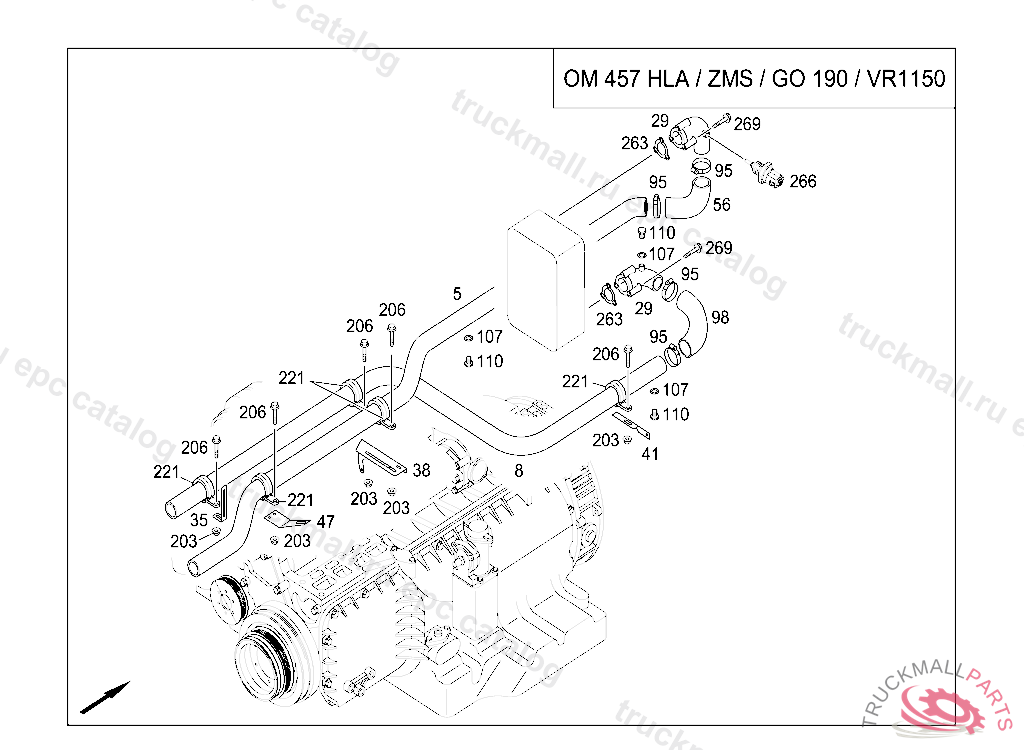

Поз.
Артикул
Описание
5
LINE FEED LINE ZF
5
LINE FEED LINE, RETARDER
8
LINE RETURN LINE ZF
29
CONNECTION FITTING
35
BRACKET
38
BRACKET
41
BRACKET
47
BRACKET
56
MOLDED HOSE ARC REDUCED 45 DEGREES 65/60MM
95
CLAMP CONNECTION OF COOLING WATER LINES 55-75X13MM
95
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
95
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
95
CLAMP
95
CLAMP HOSE TO FITTING 11 - 20 MM
98
MOLDED HOSE 90 DEGREES 60/60MM
98
MOLDED HOSE ARC REDUCED 90 DEGREES 65/60MM, Replaced By: A0025012082
98
COOLANT HOSE 90 DEGREES 60/60MM, Replaced By: A6285017782
107
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
107
SEAL RINGTO 000 553 03 05,000 553 18 05,
110
SCREW PLUGROCKINGER,TYP 59 U150
110
SCREW PLUG FUEL TANK
203
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
203
NUT , Replaced By: N913023010002
203
NUT , Replaced By: N913023006001
203
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
206
SCREW BRACKET AND CLAMP M6X20
206
HEXAGON HEAD BOLT. SCREW BRACKET MOUNTING M8 X 30
206
SCREW PICK-UP PLATE BRACKET ON LONGITUDINAL MEMBER M 14X25
206
SCREWM 10X20
206
SCREW , Replaced By: N910143008002
206
SCREW BRACKET TO SIDE MEMBER M10X35
206
HEXAGON HEAD BOLTM8X85
206
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M12X45
221
CLAMP60/25RSGU
221
CLAMP LINE MOUNTING
221
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
221
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
263
GASKET
266
TEMPERATURE SENSOR RETARDER TEMPERATURE
269
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
