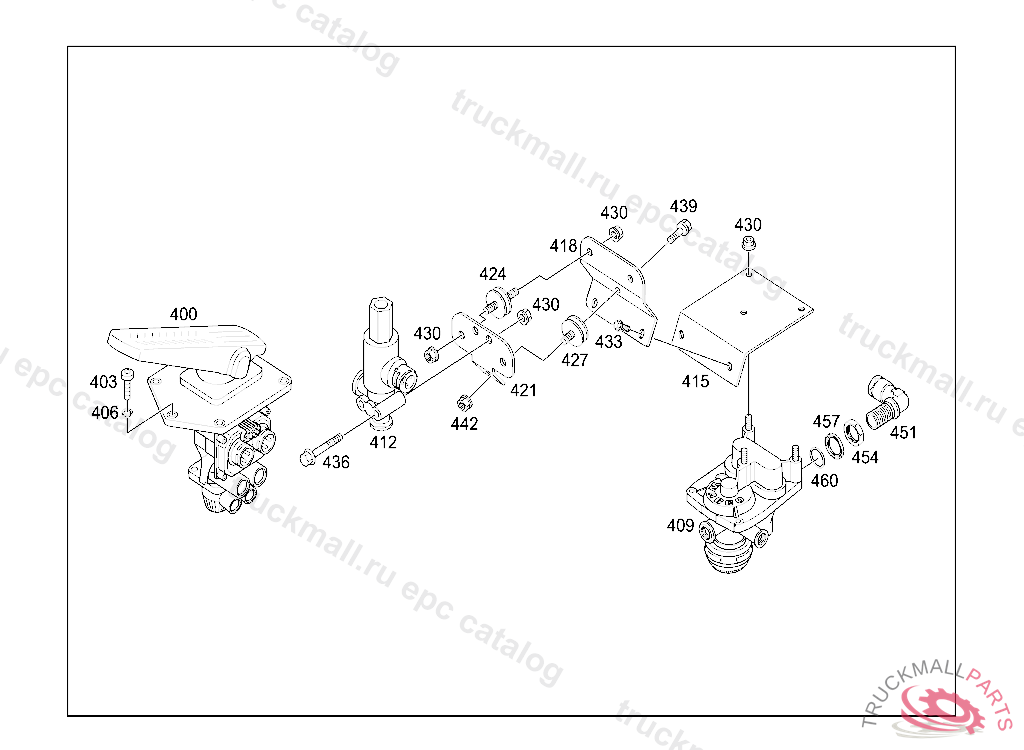

Поз.
Артикул
Описание
400
VALVE (BRAKE POWER SENSOR) SERVICE BRAKE
403
SCREW GRIP RAIL MOUNTING M8X25 TX45
406
LOCK LEVER TO TRANSMISSION
409
PROPORTIONAL VALVE FRONT AXLE
409
PROPORTIONING VALVE (RELAY VALVE),FRONT AXLE 12.5BAR
409
PROPORTIONING VALVE PROPORTIONING VALVE TO VOSS 232, FOR THIS PART NUMBER ONLY THE VOSS 232 AND SCHAEFER SDF CONNECTION SYSTEM MUST BE INSTALLED
412
VALVE (3/2-WAY SOLENOID VALVE)
415
BRACKET
418
BRACKET
421
BRACKET
424
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
427
BUFFER
430
NUT ENGINE MOUNTING M8
430
NUT HORN TO BRACKET M8
433
SCREWM 10X20
436
SCREW 3/2-WAY VALVE TO BRACKET
436
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
439
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M6X10
439
SCREW BRACKET MOUNTING M6X10
442
NUT BRACKET TO FIRE WALL
442
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
451
FITTINGNG12/M22X1.5
454
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
457
THRUST RING CHECK VALVE TO AIR RESERVOIR
460
SEAL RING20.3X2.4
