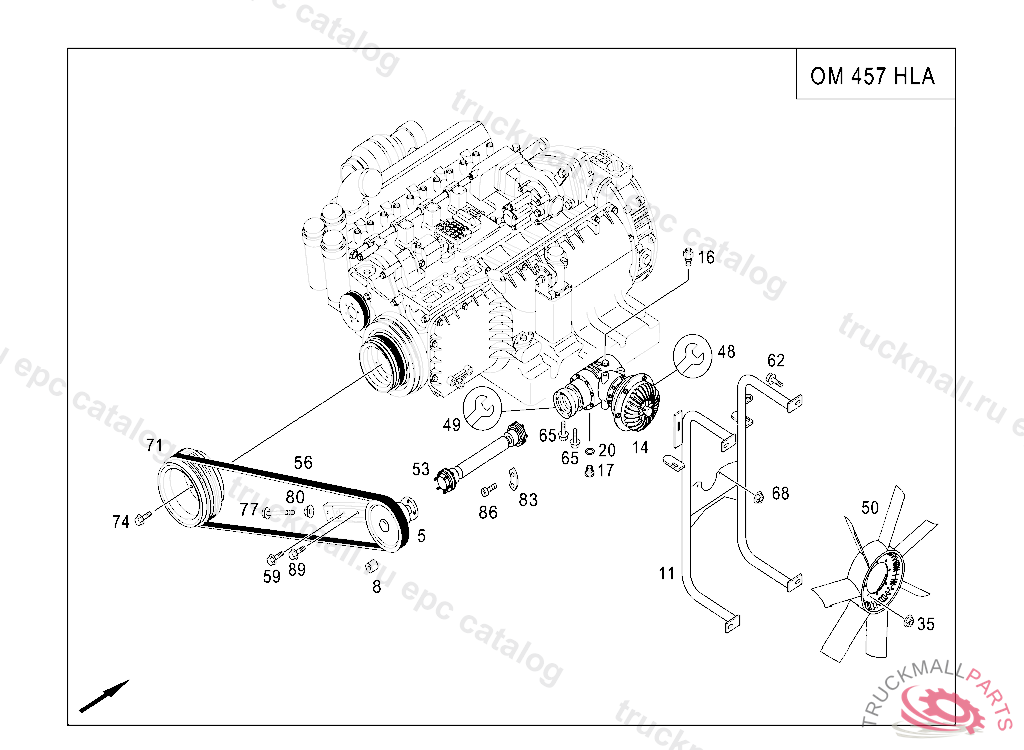

Поз.
Артикул
Описание
5
BELT TIGHTENER PULLEY
8
MUFFLER
11
SUPPORT
14
FAN DRIVE
16
BLEEDER VALVETO A 000 500 41 22
17
SCREW PLUG WATER DRAIN
20
SEALING RING. SEAL RING ENGINE BREATHING
35
NUT
48
RS BALL BEARINGTO A 000 500 41 22
49
RS COVER MITER GEARING TO A 000 500 41 22
50
FAN
53
SHAFT
56
V-BELT
59
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
62
SCREWM 10X20
65
SCREW BRACKET TO SUPPORT M 12X25,K 574789
68
NUT HORN TO BRACKET M8
71
PULLEY
74
SCREW STOP TO BATTERY CASE
77
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
80
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
83
WASHER PLANE-PARALLEL
86
HEXALOBULAR BOLT WITH HEXALOBULAR SOCKET M8X40
89
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
