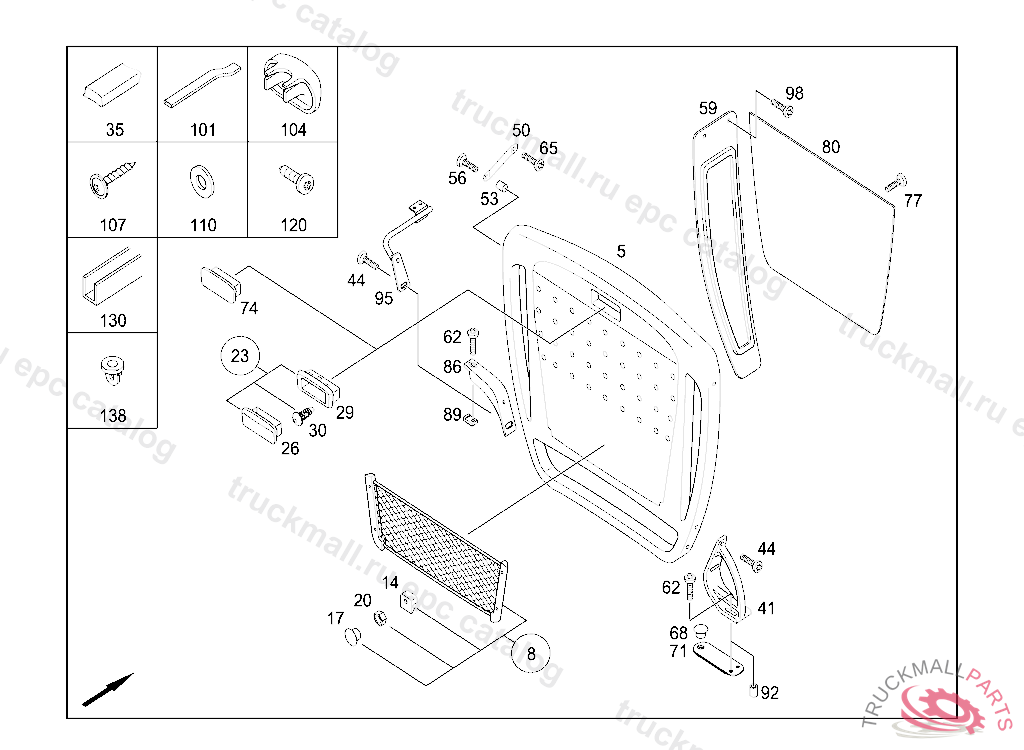

Поз.
Артикул
Описание
5
PARTITION PANEL
5
PARTITION PANEL
5
PARTITION PANEL
8
LUGGAGE NET TOTAL RANGE OF DELIVERY
14
COVERING
17
LOCKING CAP
20
NUT BRACKET MOUNTING
23
ASHTRAY TOTAL RANGE OF DELIVERY
26
COVER
29
HOUSING
30
CLIP
35
GARNISH STRIP AT PARTITION PANEL, TO BE ADAPTED DURING ASSEMBLY
41
STAY
44
SCREWM 8X22, T40
50
ANGLE
53
SPACER BUSH15X9X11LG.
56
SCREW, SPECIAL SHAPEM8X28
59
PANELLING
62
SCREWM8X40
65
SCREWM 6X35
68
CAPD18 MM
71
PLATE
74
ORNAMENTAL COVER ASHTRAY
77
SHEET METAL SCREW BRACKET TO SUPPORT
80
PANELLING , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
86
STAY
89
ANGLE
92
SPACER TUBE
95
CONSOLE RIGHT
98
SCREW
101
TUBE415MM, TO BE ADAPTED DURING ASSEMBLY
104
CONNECTION
107
TAPPING SCREW
110
WASHER
120
TAPPING SCREW SWITCH TO BRACKET MBN 10169-ST3.5X16-C
130
RAIL
138
NUTM8
